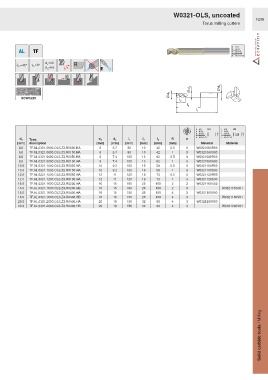

Page 1205 - Ceratizit Catalog

W0321-OLS, uncoated
F208
Torus milling cutters

Ø d 3 Ø d A
Ø d 1
SCWN225
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
6.0 TF.AL.0321.0600.OLS.Z3.R0050.HA 6 5.7 80 10 42 0.5 3 W0321060R00
6.0 TF.AL.0321.0600.OLS.Z3.R0100.HA 6 5.7 80 10 42 1 3 W0321060S00
8.0 TF.AL.0321.0800.OLS.Z3.R0050.HA 8 7.4 100 13 62 0.5 3 W0321080R00
8.0 TF.AL.0321.0800.OLS.Z3.R0100.HA 8 7.4 100 13 62 1 3 W0321080S00
10.0 TF.AL.0321.1000.OLS.Z3.R0050.HA 10 9.2 100 16 58 0.5 3 W0321100R00
10.0 TF.AL.0321.1000.OLS.Z3.R0100.HA 10 9.2 100 16 58 1 3 W0321100S00
12.0 TF.AL.0321.1200.OLS.Z3.R0050.HA 12 11 120 19 73 0.5 3 W0321120R00
12.0 TF.AL.0321.1200.OLS.Z3.R0100.HA 12 11 120 19 73 1 3 W0321120S00
16.0 TF.AL.0321.1600.OLS.Z3.R0200.HA 16 15 150 25 100 2 3 W0321160U00
16.0 TF.AL.0321.1600.OLS.Z3.R0200.HB 16 15 150 25 100 2 3 W0321160U01
16.0 TF.AL.0321.1600.OLS.Z3.R0400.HA 16 15 150 25 100 4 3 W0321160V00
16.0 TF.AL.0321.1600.OLS.Z3.R0400.HB 16 15 150 25 100 4 3 W0321160V01
20.0 TF.AL.0321.2000.OLS.Z3.R0400.HA 20 19 150 32 98 4 3 W0321200V00
20.0 TF.AL.0321.2000.OLS.Z3.R0400.HB 20 19 150 32 98 4 3 W0321200V01

Solid carbide tools / Milling
