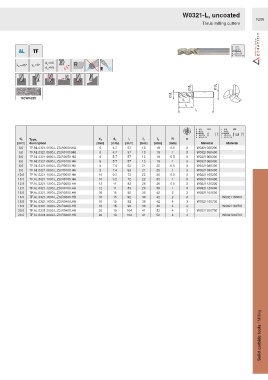

Page 1203 - Ceratizit Catalog

W0321-L, uncoated
F206
Torus milling cutters

Ø d 3 Ø d A
Ø d 1
SCWN225
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
5.0 TF.AL.0321.0500.L.Z3.R0050.HA 6 4.7 57 13 19 0.5 3 W0321050300
5.0 TF.AL.0321.0500.L.Z3.R0100.HA 6 4.7 57 13 19 1 3 W0321050400
6.0 TF.AL.0321.0600.L.Z3.R0050.HA 6 5.7 57 13 19 0.5 3 W0321060300
6.0 TF.AL.0321.0600.L.Z3.R0100.HA 6 5.7 57 13 19 1 3 W0321060400
8.0 TF.AL.0321.0800.L.Z3.R0050.HA 8 7.4 63 21 25 0.5 3 W0321080300
8.0 TF.AL.0321.0800.L.Z3.R0100.HA 8 7.4 63 21 25 1 3 W0321080400
10.0 TF.AL.0321.1000.L.Z3.R0050.HA 10 9.2 72 22 30 0.5 3 W0321100300
10.0 TF.AL.0321.1000.L.Z3.R0100.HA 10 9.2 72 22 30 1 3 W0321100400
12.0 TF.AL.0321.1200.L.Z3.R0050.HA 12 11 83 26 36 0.5 3 W0321120300
12.0 TF.AL.0321.1200.L.Z3.R0100.HA 12 11 83 26 36 1 3 W0321120400
16.0 TF.AL.0321.1600.L.Z3.R0200.HA 16 15 92 36 42 2 3 W0321160600
16.0 TF.AL.0321.1600.L.Z3.R0200.HB 16 15 92 36 42 2 3 W0321160601
16.0 TF.AL.0321.1600.L.Z3.R0400.HA 16 15 92 36 42 4 3 W0321160700
16.0 TF.AL.0321.1600.L.Z3.R0400.HB 16 15 92 36 42 4 3 W0321160701
20.0 TF.AL.0321.2000.L.Z3.R0400.HA 20 19 104 41 52 4 3 W0321200700
20.0 TF.AL.0321.2000.L.Z3.R0400.HB 20 19 104 41 52 4 3 W0321200701

Solid carbide tools / Milling
