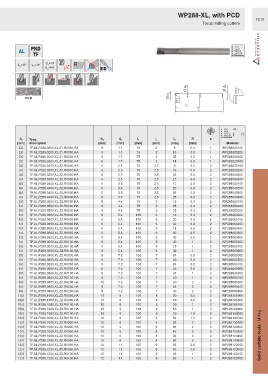

Page 1207 - Ceratizit Catalog

WP288-XL, with PCD
F210
Torus milling cutters

h7

Ø d 3 Ø d A
Ø d 1
PKD
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
2.0 TF.AL.P288.0200.XL.Z1.R0030.HA 6 1.7 75 2 6 0.3 1 WP288020100
2.0 TF.AL.P288.0200.XL.Z1.R0030.HA 6 1.7 75 2 10 0.3 1 WP288020200
2.0 TF.AL.P288.0200.XL.Z1.R0030.HA 6 1.7 75 2 35 0.3 1 WP288020300
2.0 TF.AL.P288.0200.XL.Z1.R0030.HA 6 1.7 75 2 14 0.3 1 WP288020400
3.0 TF.AL.P288.0300.XL.Z2.R0030.HA 6 2.5 75 2.5 9 0.3 2 WP288030100
3.0 TF.AL.P288.0300.XL.Z2.R0030.HA 6 2.5 75 2.5 15 0.3 2 WP288030200
3.0 TF.AL.P288.0300.XL.Z2.R0030.HA 6 2.5 75 2.5 35 0.3 2 WP288030300
3.0 TF.AL.P288.0300.XL.Z2.R0030.HA 6 2.5 75 2.5 21 0.3 2 WP288030400
4.0 TF.AL.P288.0400.XL.Z2.R0030.HA 6 3.5 75 2.5 12 0.3 2 WP288040100
4.0 TF.AL.P288.0400.XL.Z2.R0030.HA 6 3.5 75 2.5 20 0.3 2 WP288040200
4.0 TF.AL.P288.0400.XL.Z2.R0030.HA 6 3.5 75 2.5 35 0.3 2 WP288040300
4.0 TF.AL.P288.0400.XL.Z2.R0030.HA 6 3.5 75 2.5 28 0.3 2 WP288040400
5.0 TF.AL.P288.0500.XL.Z2.R0030.HA 6 4.4 75 3 15 0.3 2 WP288050100
5.0 TF.AL.P288.0500.XL.Z2.R0030.HA 6 4.4 75 3 25 0.3 2 WP288050200
5.0 TF.AL.P288.0500.XL.Z2.R0030.HA 6 4.4 75 3 35 0.3 2 WP288050300
6.0 TF.AL.P288.0600.XL.Z2.R0030.HA 6 5.4 100 6 18 0.3 2 WP288060000
6.0 TF.AL.P288.0600.XL.Z2.R0030.HA 6 5.4 100 6 30 0.3 2 WP288060100
6.0 TF.AL.P288.0600.XL.Z2.R0030.HA 6 5.4 100 6 42 0.3 2 WP288060200
6.0 TF.AL.P288.0600.XL.Z2.R0050.HA 6 5.4 100 6 18 0.5 2 WP288060400
6.0 TF.AL.P288.0600.XL.Z2.R0050.HA 6 5.4 100 6 30 0.5 2 WP288060500
6.0 TF.AL.P288.0600.XL.Z2.R0050.HA 6 5.4 100 6 42 0.5 2 WP288060600
6.0 TF.AL.P288.0600.XL.Z2.R0100.HA 8 5.4 100 6 40 1 2 WP288060300
6.0 TF.AL.P288.0600.XL.Z2.R0100.HA 6 5.4 100 6 18 1 2 WP288060700
6.0 TF.AL.P288.0600.XL.Z2.R0100.HA 6 5.4 100 6 42 1 2 WP288060900
8.0 TF.AL.P288.0800.XL.Z2.R0030.HA 8 7.2 100 7 24 0.3 2 WP288080000
8.0 TF.AL.P288.0800.XL.Z2.R0030.HA 8 7.2 100 7 40 0.3 2 WP288080500
8.0 TF.AL.P288.0800.XL.Z2.R0050.HA 8 7.2 100 7 24 0.5 2 WP288080100
8.0 TF.AL.P288.0800.XL.Z2.R0050.HA 8 7.2 100 7 40 0.5 2 WP288080600
8.0 TF.AL.P288.0800.XL.Z2.R0100.HA 8 7.2 100 7 24 1 2 WP288080200
8.0 TF.AL.P288.0800.XL.Z2.R0100.HA 8 7.2 100 7 40 1 2 WP288080700
8.0 TF.AL.P288.0800.XL.Z2.R0200.HA 10 7.2 100 7 40 2 2 WP288080300
8.0 TF.AL.P288.0800.XL.Z2.R0200.HA 8 7.2 100 7 24 2 2 WP288080400
8.0 TF.AL.P288.0800.XL.Z2.R0200.HA 8 7.2 100 7 40 2 2 WP288080800
10.0 TF.AL.P288.1000.XL.Z2.R0050.HA 10 9 100 8 30 0.5 2 WP288100000
10.0 TF.AL.P288.1000.XL.Z2.R0050.HA 10 9 100 8 50 0.5 2 WP288100500
10.0 TF.AL.P288.1000.XL.Z2.R0100.HA 10 9 100 8 30 1 2 WP288100100
10.0 TF.AL.P288.1000.XL.Z2.R0100.HA 10 9 100 8 50 1 2 WP288100600
10.0 TF.AL.P288.1000.XL.Z2.R0150.HA 10 9 100 8 30 1.5 2 WP288100200
10.0 TF.AL.P288.1000.XL.Z2.R0150.HA 10 9 100 8 50 1.5 2 WP288100700
10.0 TF.AL.P288.1000.XL.Z2.R0200.HA 10 9 100 8 30 2 2 WP288100A00
10.0 TF.AL.P288.1000.XL.Z2.R0200.HA 10 9 100 8 50 2 2 WP288100800
10.0 TF.AL.P288.1000.XL.Z2.R0300.HA 12 9 100 8 40 3 2 WP288100300
10.0 TF.AL.P288.1000.XL.Z2.R0300.HA 10 9 100 8 30 3 2 WP288100400 Solid carbide tools / Milling
10.0 TF.AL.P288.1000.XL.Z2.R0300.HA 10 9 100 8 50 3 2 WP288100900
12.0 TF.AL.P288.1200.XL.Z2.R0050.HA 12 11 105 9 36 0.5 2 WP288120000
12.0 TF.AL.P288.1200.XL.Z2.R0050.HA 12 11 105 9 60 0.5 2 WP288120600
12.0 TF.AL.P288.1200.XL.Z2.R0100.HA 12 11 105 9 36 1 2 WP288120100
12.0 TF.AL.P288.1200.XL.Z2.R0100.HA 12 11 105 9 60 1 2 WP288120700
