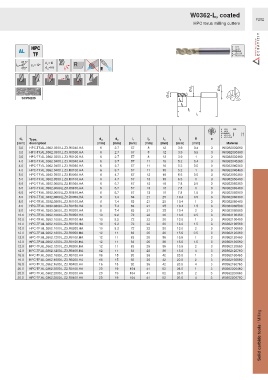

Page 1199 - Ceratizit Catalog

W0362-L, coated
F202
HPC torus milling cutters

Ø d 3 Ø d A
Ø d 1
SCPN235
l 4
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 l 4 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm] Material
3.0 HPC-TF.AL.0362.0300.L.Z3.R0040.HA 6 2.7 57 8 12 3.9 0.4 3 W0362030260
3.0 HPC-TF.AL.0362.0300.L.Z3.R0050.HA 6 2.7 57 8 12 3.9 0.5 3 W0362030360
3.0 HPC-TF.AL.0362.0300.L.Z3.R0100.HA 6 2.7 57 8 12 3.9 1 3 W0362030460
4.0 HPC-TF.AL.0362.0400.L.Z3.R0040.HA 6 3.7 57 11 18 5.2 0.4 3 W0362040260
4.0 HPC-TF.AL.0362.0400.L.Z3.R0050.HA 6 3.7 57 11 18 5.2 0.5 3 W0362040360
4.0 HPC-TF.AL.0362.0400.L.Z3.R0100.HA 6 3.7 57 11 18 5.2 1 3 W0362040460
5.0 HPC-TF.AL.0362.0500.L.Z3.R0050.HA 6 4.7 57 13 18 6.5 0.5 3 W0362050360
5.0 HPC-TF.AL.0362.0500.L.Z3.R0100.HA 6 4.7 57 13 18 6.5 1 3 W0362050460
6.0 HPC-TF.AL.0362.0600.L.Z3.R0050.HA 6 5.7 57 13 18 7.8 0.5 3 W0362060360
6.0 HPC-TF.AL.0362.0600.L.Z3.R0100.HA 6 5.7 57 13 18 7.8 1 3 W0362060460
6.0 HPC-TF.AL.0362.0600.L.Z3.R0150.HA 6 5.7 57 13 18 7.8 1.5 3 W0362060560
8.0 HPC-TF.AL.0362.0800.L.Z3.R0050.HA 8 7.4 63 21 25 10.4 0.5 3 W0362080360
8.0 HPC-TF.AL.0362.0800.L.Z3.R0100.HA 8 7.4 63 21 25 10.4 1 3 W0362080460
8.0 HPC-TF.AL.0362.0800.L.Z3.R0150.HA 8 7.4 63 21 25 10.4 1.5 3 W0362080560
8.0 HPC-TF.AL.0362.0800.L.Z3.R0200.HA 8 7.4 63 21 25 10.4 2 3 W0362080660
10.0 HPC-TF.AL.0362.1000.L.Z3.R0050.HA 10 9.2 72 22 30 13.0 0.5 3 W0362100360
10.0 HPC-TF.AL.0362.1000.L.Z3.R0100.HA 10 9.2 72 22 30 13.0 1 3 W0362100460
10.0 HPC-TF.AL.0362.1000.L.Z3.R0150.HA 10 9.2 72 22 30 13.0 1.5 3 W0362100560
10.0 HPC-TF.AL.0362.1000.L.Z3.R0200.HA 10 9.2 72 22 30 13.0 2 3 W0362100660
12.0 HPC-TF.AL.0362.1200.L.Z3.R0050.HA 12 11 83 26 36 15.6 0.5 3 W0362120360
12.0 HPC-TF.AL.0362.1200.L.Z3.R0100.HA 12 11 83 26 36 15.6 1 3 W0362120460
12.0 HPC-TF.AL.0362.1200.L.Z3.R0150.HA 12 11 83 26 36 15.6 1.5 3 W0362120560
12.0 HPC-TF.AL.0362.1200.L.Z3.R0200.HA 12 11 83 26 36 15.6 2 3 W0362120660
12.0 HPC-TF.AL.0362.1200.L.Z3.R0400.HA 12 11 83 26 36 15.6 4 3 W0362120760
16.0 HPC-TF.AL.0362.1600.L.Z3.R0100.HA 16 15 92 36 42 20.8 1 3 W0362160460
16.0 HPC-TF.AL.0362.1600.L.Z3.R0200.HA 16 15 92 36 42 20.8 2 3 W0362160660
16.0 HPC-TF.AL.0362.1600.L.Z3.R0400.HA 16 15 92 36 42 20.8 4 3 W0362160760
20.0 HPC-TF.AL.0362.2000.L.Z3.R0100.HA 20 19 104 41 52 26.0 1 3 W0362200460
20.0 HPC-TF.AL.0362.2000.L.Z3.R0200.HA 20 19 104 41 52 26.0 2 3 W0362200660
20.0 HPC-TF.AL.0362.2000.L.Z3.R0400.HA 20 19 104 41 52 26.0 4 3 W0362200760

Solid carbide tools / Milling
