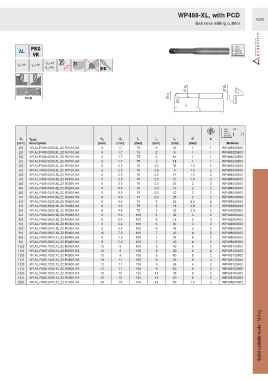

Page 1197 - Ceratizit Catalog

WP488-XL, with PCD
F200
Ball nose milling cutters

h7 R

Ø d 3 Ø d A
Ø d 1
PKD
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
2.0 VR.AL.P488.0200.XL.Z2.R0100.HA 6 1.7 75 2 35 1 1 WP488020300
2.0 VR.AL.P488.0200.XL.Z2.R0100.HA 6 1.7 75 2 6 1 1 WP488020400
2.0 VR.AL.P488.0200.XL.Z2.R0100.HA 6 1.7 75 2 10 1 1 WP488020500
2.0 VR.AL.P488.0200.XL.Z2.R0100.HA 6 1.7 75 2 14 1 1 WP488020600
3.0 VR.AL.P488.0300.XL.Z2.R0150.HA 6 2.5 75 2.5 35 1.5 2 WP488030300
3.0 VR.AL.P488.0300.XL.Z2.R0150.HA 6 2.5 75 2.5 9 1.5 2 WP488030400
3.0 VR.AL.P488.0300.XL.Z2.R0150.HA 6 2.5 75 2.5 15 1.5 2 WP488030500
3.0 VR.AL.P488.0300.XL.Z2.R0150.HA 6 2.5 75 2.5 21 1.5 2 WP488030600
4.0 VR.AL.P488.0400.XL.Z2.R0200.HA 6 3.5 75 2.5 35 2 2 WP488040300
4.0 VR.AL.P488.0400.XL.Z2.R0200.HA 6 3.5 75 2.5 12 2 2 WP488040400
4.0 VR.AL.P488.0400.XL.Z2.R0200.HA 6 3.5 75 2.5 20 2 2 WP488040500
4.0 VR.AL.P488.0400.XL.Z2.R0200.HA 6 3.5 75 2.5 28 2 2 WP488040600
5.0 VR.AL.P488.0500.XL.Z2.R0250.HA 6 4.4 75 3 35 2.5 2 WP488050300
5.0 VR.AL.P488.0500.XL.Z2.R0250.HA 6 4.4 75 3 15 2.5 2 WP488050400
5.0 VR.AL.P488.0500.XL.Z2.R0250.HA 6 4.4 75 3 25 2.5 2 WP488050500
6.0 VR.AL.P488.0600.XL.Z2.R0300.HA 8 5.4 100 6 40 3 2 WP488060300
6.0 VR.AL.P488.0600.XL.Z2.R0300.HA 6 5.4 100 6 18 3 2 WP488060400
6.0 VR.AL.P488.0600.XL.Z2.R0300.HA 6 5.4 100 6 30 3 2 WP488060500
6.0 VR.AL.P488.0600.XL.Z2.R0300.HA 6 5.4 100 6 42 3 2 WP488060600
8.0 VR.AL.P488.0800.XL.Z2.R0400.HA 10 7.2 100 7 40 4 2 WP488080300
8.0 VR.AL.P488.0800.XL.Z2.R0400.HA 8 7.2 100 7 24 4 2 WP488080400
8.0 VR.AL.P488.0800.XL.Z2.R0400.HA 8 7.2 100 7 40 4 2 WP488080500
10.0 VR.AL.P488.1000.XL.Z2.R0500.HA 12 9 100 8 40 5 2 WP488100300
10.0 VR.AL.P488.1000.XL.Z2.R0500.HA 10 9 100 8 30 5 2 WP488100400
10.0 VR.AL.P488.1000.XL.Z2.R0500.HA 10 9 100 8 50 5 2 WP488100500
12.0 VR.AL.P488.1200.XL.Z2.R0600.HA 16 11 105 9 40 6 2 WP488120300
12.0 VR.AL.P488.1200.XL.Z2.R0600.HA 12 11 105 9 36 6 2 WP488120400
12.0 VR.AL.P488.1200.XL.Z2.R0600.HA 12 11 105 9 60 6 2 WP488120500
16.0 VR.AL.P488.1600.XL.Z2.R0800.HA 16 15 130 11 45 8 2 WP488160200
16.0 VR.AL.P488.1600.XL.Z2.R0800.HA 16 15 130 11 50 8 2 WP488160300
20.0 VR.AL.P488.2000.XL.Z2.R1000.HA 20 19 160 13 60 10 2 WP488200300
