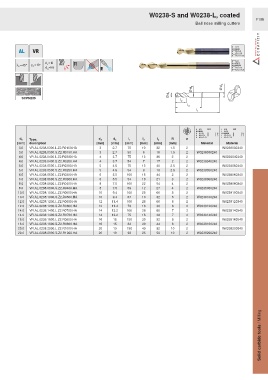

Page 1193 - Ceratizit Catalog

W0238-S and W0238-L, coated
F196
Ball nose milling cutters

R

Ø d 3 Ø d A
Ø d 1
SCPN235
l 2
l 3
l 1

HA HA
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
3.0 VR.AL.0238.0300.L.Z2.R0150.HA 3 2.7 75 10 32 1.5 2 W0238030340
3.0 VR.AL.0238.0300.S.Z2.R0150.HA 3 2.7 50 6 16 1.5 2 W0238030240
4.0 VR.AL.0238.0400.L.Z2.R0200.HA 4 3.7 75 13 36 2 2 W0238040340
4.0 VR.AL.0238.0400.S.Z2.R0200.HA 4 3.7 54 7 17 2 2 W0238040240
5.0 VR.AL.0238.0500.L.Z2.R0250.HA 5 4.6 75 15 40 2.5 2 W0238050340
5.0 VR.AL.0238.0500.S.Z2.R0250.HA 5 4.6 54 8 18 2.5 2 W0238050240
6.0 VR.AL.0238.0600.L.Z2.R0300.HA 6 5.5 100 16 44 3 2 W0238060340
6.0 VR.AL.0238.0600.S.Z2.R0300.HA 6 5.5 54 10 21 3 2 W0238060240
8.0 VR.AL.0238.0800.L.Z2.R0400.HA 8 7.5 100 22 54 4 2 W0238080340
8.0 VR.AL.0238.0800.S.Z2.R0400.HA 8 7.5 59 12 27 4 2 W0238080240
10.0 VR.AL.0238.1000.L.Z2.R0500.HA 10 9.4 100 25 60 5 2 W0238100340
10.0 VR.AL.0238.1000.S.Z2.R0500.HA 10 9.4 67 13 32 5 2 W0238100240
12.0 VR.AL.0238.1200.L.Z2.R0600.HA 12 11.4 100 26 60 6 2 W0238120340
12.0 VR.AL.0238.1200.S.Z2.R0600.HA 12 11.4 73 16 38 6 2 W0238120240
14.0 VR.AL.0238.1400.L.Z2.R0700.HA 14 13.2 100 26 60 7 2 W0238140340
14.0 VR.AL.0238.1400.S.Z2.R0700.HA 14 13.2 75 16 38 7 2 W0238140240
16.0 VR.AL.0238.1600.L.Z2.R0800.HA 16 15 150 30 92 8 2 W0238160340
16.0 VR.AL.0238.1600.S.Z2.R0800.HA 16 15 83 20 44 8 2 W0238160240
20.0 VR.AL.0238.2000.L.Z2.R1000.HA 20 19 150 40 92 10 2 W0238200340
20.0 VR.AL.0238.2000.S.Z2.R1000.HA 20 19 93 25 50 10 2 W0238200240

Solid carbide tools / Milling
