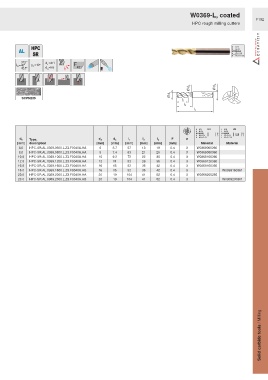

W0369-L, coated
F192
HPC rough milling cutters

Ø d 3 Ø d A
Ø d 1
SCPN235
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
6.0 HPC-SR.AL.0369.0600.L.Z3.F0040A.HA 6 5.7 57 13 18 0.4 3 W0369060360
8.0 HPC-SR.AL.0369.0800.L.Z3.F0040A.HA 8 7.4 63 21 25 0.4 3 W0369080360
10.0 HPC-SR.AL.0369.1000.L.Z3.F0040A.HA 10 9.2 72 22 30 0.4 3 W0369100360
12.0 HPC-SR.AL.0369.1200.L.Z3.F0040A.HA 12 11 83 26 36 0.4 3 W0369120360
16.0 HPC-SR.AL.0369.1600.L.Z3.F0040A.HA 16 15 92 36 42 0.4 3 W0369160360
16.0 HPC-SR.AL.0369.1600.L.Z3.F0040A.HB 16 15 92 36 42 0.4 3 W0369160361
20.0 HPC-SR.AL.0369.2000.L.Z3.F0040A.HA 20 19 104 41 52 0.4 3 W0369200360
20.0 HPC-SR.AL.0369.2000.L.Z3.F0040A.HB 20 19 104 41 52 0.4 3 W0369200361

Solid carbide tools / Milling
