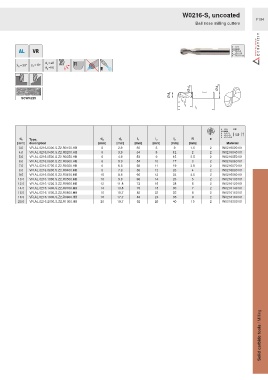

Page 1191 - Ceratizit Catalog

W0216-S, uncoated
F194
Ball nose milling cutters

R

Ø d 3 Ø d A
Ø d 1
SCWN225
l 2
l 3
l 1

HB
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
3.0 VR.AL.0216.0300.S.Z2.R0150.HB 6 2.9 50 5 9 1.5 2 W0216030101
4.0 VR.AL.0216.0400.S.Z2.R0200.HB 6 3.9 54 8 12 2 2 W0216040101
5.0 VR.AL.0216.0500.S.Z2.R0250.HB 6 4.9 54 9 15 2.5 2 W0216050101
6.0 VR.AL.0216.0600.S.Z2.R0300.HB 6 5.9 54 10 17 3 2 W0216060101
7.0 VR.AL.0216.0700.S.Z2.R0350.HB 8 6.8 58 11 19 3.5 2 W0216070101
8.0 VR.AL.0216.0800.S.Z2.R0400.HB 8 7.8 58 12 20 4 2 W0216080101
9.0 VR.AL.0216.0900.S.Z2.R0450.HB 10 8.8 66 13 23 4.5 2 W0216090101
10.0 VR.AL.0216.1000.S.Z2.R0500.HB 10 9.8 66 14 26 5 2 W0216100101
12.0 VR.AL.0216.1200.S.Z2.R0600.HB 12 11.8 73 16 28 6 2 W0216120101
14.0 VR.AL.0216.1400.S.Z2.R0700.HB 14 13.8 75 18 30 7 2 W0216140101
16.0 VR.AL.0216.1600.S.Z2.R0800.HB 16 15.7 82 22 32 8 2 W0216160101
18.0 VR.AL.0216.1800.S.Z2.R0900.HB 18 17.7 84 24 35 9 2 W0216180101
20.0 VR.AL.0216.2000.S.Z2.R1000.HB 20 19.7 92 26 40 10 2 W0216200101

Solid carbide tools / Milling
