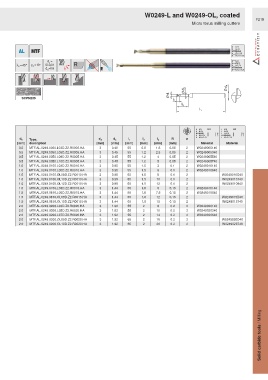

Page 1215 - Ceratizit Catalog

W0249-L and W0249-OL, coated
F218
Micro torus milling cutters

Ø d 3 Ø d A
Ø d 1
SCPN235
l 2
l 3
l 1

HA HA
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
0.5 MTF.AL.0249.0050.L03D.Z2.R0005.HA 3 0.45 55 0.5 1.5 0.05 2 W0249005140
0.5 MTF.AL.0249.0050.L05D.Z2.R0005.HA 3 0.45 55 1.2 2.5 0.05 2 W0249005340
0.5 MTF.AL.0249.0050.L08D.Z2.R0005.HA 3 0.45 55 1.2 4 0.05 2 W0249005540
0.5 MTF.AL.0249.0050.L10D.Z2.R0005.HA 3 0.45 55 1.2 5 0.05 2 W0249005740
1.0 MTF.AL.0249.0100.L03D.Z2.R0010.HA 3 0.95 55 1.5 3 0.1 2 W0249010140
1.0 MTF.AL.0249.0100.L05D.Z2.R0010.HA 3 0.95 55 1.5 5 0.1 2 W0249010640
1.0 MTF.AL.0249.0100.OL08D.Z2.R0010.HA 3 0.95 65 1.5 8 0.1 2 W0249010D40
1.0 MTF.AL.0249.0100.OL10D.Z2.R0010.HA 3 0.95 65 1.5 10 0.1 2 W0249010740
1.0 MTF.AL.0249.0100.OL12D.Z2.R0010.HA 3 0.95 65 1.5 12 0.1 2 W0249010840
1.5 MTF.AL.0249.0150.L03D.Z2.R0015.HA 3 1.44 55 1.8 5 0.15 2 W0249015140
1.5 MTF.AL.0249.0150.L05D.Z2.R0015.HA 3 1.44 55 1.8 7.5 0.15 2 W0249015640
1.5 MTF.AL.0249.0150.OL08D.Z2.R0015.HA 3 1.44 65 1.8 12 0.15 2 W0249015D40
1.5 MTF.AL.0249.0150.OL10D.Z2.R0015.HA 3 1.44 65 1.8 15 0.15 2 W0249015740
2.0 MTF.AL.0249.0200.L03D.Z2.R0020.HA 3 1.92 55 2 6 0.2 2 W0249020140
2.0 MTF.AL.0249.0200.L05D.Z2.R0020.HA 3 1.92 55 2 10 0.2 2 W0249020240
2.0 MTF.AL.0249.0200.L07D.Z2.R0020.HA 3 1.92 55 2 14 0.2 2 W0249020640
2.0 MTF.AL.0249.0200.OL08D.Z2.R0020.HA 3 1.92 65 2 16 0.2 2 W0249020D40
2.0 MTF.AL.0249.0200.OL10D.Z2.R0020.HA 3 1.92 65 2 20 0.2 2 W0249020740

Solid carbide tools / Milling
