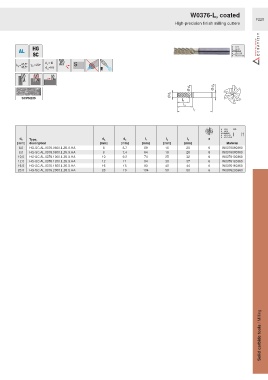

W0376-L, coated
F220
High-precision finish milling cutters

Ø d 3 Ø d A
Ø d 1
SCPN235
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 z
[mm] description [mm] [mm] [mm] [mm] [mm] Material
6.0 HG-SC.AL.0376.0600.L.Z6.S.HA 6 5.7 58 16 20 6 W0376060360
8.0 HG-SC.AL.0376.0800.L.Z6.S.HA 8 7.4 64 19 26 6 W0376080360
10.0 HG-SC.AL.0376.1000.L.Z6.S.HA 10 9.2 74 25 32 6 W0376100360
12.0 HG-SC.AL.0376.1200.L.Z6.S.HA 12 11 84 30 37 6 W0376120360
16.0 HG-SC.AL.0376.1600.L.Z6.S.HA 16 15 93 40 44 6 W0376160360
20.0 HG-SC.AL.0376.2000.L.Z6.S.HA 20 19 104 50 53 6 W0376200360

Solid carbide tools / Milling
