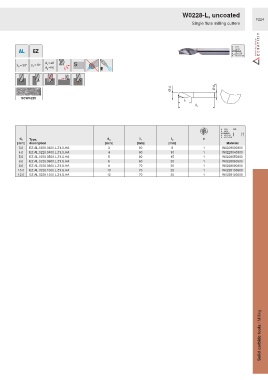

W0228-L, uncoated
F224
Single flute milling cutters

Ø d 1 Ø d A

SCWN225
l 2
l 1

HA
d 1 Type, d A l 1 l 2 z
[mm] description [mm] [mm] [mm] Material
3.0 EZ.AL.0228.0300.L.Z1.S.HA 3 50 8 1 W0228030300
4.0 EZ.AL.0228.0400.L.Z1.S.HA 4 60 10 1 W0228040300
5.0 EZ.AL.0228.0500.L.Z1.S.HA 5 60 15 1 W0228050300
6.0 EZ.AL.0228.0600.L.Z1.S.HA 6 60 20 1 W0228060300
8.0 EZ.AL.0228.0800.L.Z1.S.HA 8 70 25 1 W0228080300
10.0 EZ.AL.0228.1000.L.Z1.S.HA 10 70 25 1 W0228100300
12.0 EZ.AL.0228.1200.L.Z1.S.HA 12 70 25 1 W0228120300

Solid carbide tools / Milling
