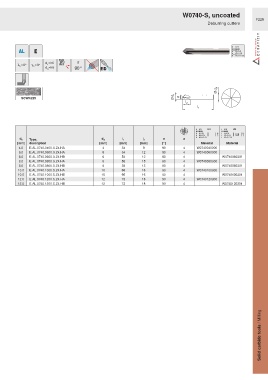

Page 1223 - Ceratizit Catalog

W0740-S, uncoated
F226
Deburring cutters

σ
90°

Ø d A
Ø d 1 σ
SCWN225
l 2
l 1

HA HB
d 1 Type, d A l 1 l 2 σ z
[mm] description [mm] [mm] [mm] [°] Material Material
4.0 E.AL.0740.0400.S.Z4.HA 4 54 9 90 4 W0740040300
6.0 E.AL.0740.0600.S.Z4.HA 6 54 12 90 4 W0740060300
6.0 E.AL.0740.0600.S.Z4.HB 6 54 12 90 4 W0740060301
8.0 E.AL.0740.0800.S.Z4.HA 8 58 15 90 4 W0740080300
8.0 E.AL.0740.0800.S.Z4.HB 8 58 15 90 4 W0740080301
10.0 E.AL.0740.1000.S.Z4.HA 10 66 16 90 4 W0740100300
10.0 E.AL.0740.1000.S.Z4.HB 10 66 16 90 4 W0740100301
12.0 E.AL.0740.1200.S.Z4.HA 12 73 18 90 4 W0740120300
12.0 E.AL.0740.1200.S.Z4.HB 12 73 18 90 4 W0740120301

Solid carbide tools / Milling
