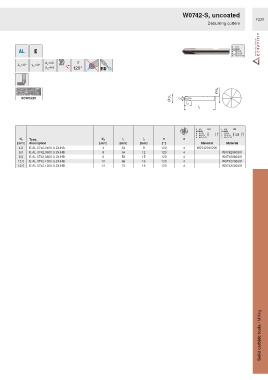

Page 1227 - Ceratizit Catalog

W0742-S, uncoated
F230
Deburring cutters

σ
120°

Ø d A
Ø d 1 σ
SCWN225
l 2
l 1

HA HB
d 1 Type, d A l 1 l 2 σ z
[mm] description [mm] [mm] [mm] [°] Material Material
4.0 E.AL.0742.0400.S.Z4.HA 4 54 9 120 4 W0742040300
6.0 E.AL.0742.0600.S.Z4.HB 6 54 12 120 4 W0742060301
8.0 E.AL.0742.0800.S.Z4.HB 8 58 15 120 4 W0742080301
10.0 E.AL.0742.1000.S.Z4.HB 10 66 16 120 4 W0742100301
12.0 E.AL.0742.1200.S.Z4.HB 12 73 18 120 4 W0742120301

Solid carbide tools / Milling
