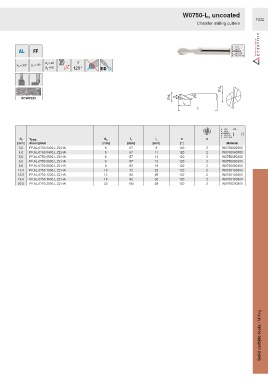

Page 1229 - Ceratizit Catalog

W0750-L, uncoated
F232
Chamfer milling cutters

σ
120°

Ø d A
Ø d 1 σ
SCWP225
l 2
l 1

HA
d 1 Type, d A l 1 l 2 σ z
[mm] description [mm] [mm] [mm] [°] Material
3.0 FF.AL.0750.0300.L.Z2.HA 6 57 8 120 2 W0750030300
4.0 FF.AL.0750.0400.L.Z2.HA 6 57 11 120 2 W0750040300
5.0 FF.AL.0750.0500.L.Z2.HA 6 57 13 120 2 W0750050300
6.0 FF.AL.0750.0600.L.Z2.HA 6 57 13 120 2 W0750060300
8.0 FF.AL.0750.0800.L.Z2.HA 8 63 19 120 2 W0750080300
10.0 FF.AL.0750.1000.L.Z2.HA 10 72 22 120 2 W0750100300
12.0 FF.AL.0750.1200.L.Z2.HA 12 83 26 120 2 W0750120300
16.0 FF.AL.0750.1600.L.Z2.HA 16 92 32 120 2 W0750160300
20.0 FF.AL.0750.2000.L.Z2.HA 20 104 38 120 2 W0750200300

Solid carbide tools / Milling
