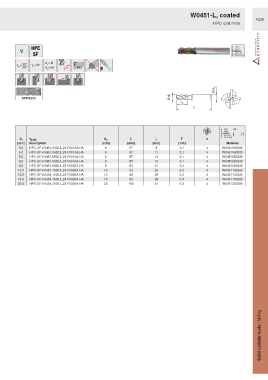

Page 1233 - Ceratizit Catalog

W0451-L, coated
F236
HPC end mills

Ø d A
Ø d 1
SCPX230
l 2
l 1

HA
d 1 Type, d A l 1 l 2 F z
[mm] description [mm] [mm] [mm] [mm] Material
3.0 HPC-SF.V.0451.0300.L.Z4.F0010A.HA 6 57 8 0.1 4 W0451030330
4.0 HPC-SF.V.0451.0400.L.Z4.F0010A.HA 6 57 11 0.1 4 W0451040330
5.0 HPC-SF.V.0451.0500.L.Z4.F0010A.HA 6 57 13 0.1 4 W0451050330
6.0 HPC-SF.V.0451.0600.L.Z4.F0010A.HA 6 57 13 0.1 4 W0451060330
8.0 HPC-SF.V.0451.0800.L.Z4.F0020A.HA 8 63 21 0.2 4 W0451080330
10.0 HPC-SF.V.0451.1000.L.Z4.F0020A.HA 10 72 22 0.2 4 W0451100330
12.0 HPC-SF.V.0451.1200.L.Z4.F0030A.HA 12 83 26 0.3 4 W0451120330
16.0 HPC-SF.V.0451.1600.L.Z4.F0030A.HA 16 92 36 0.3 4 W0451160330
20.0 HPC-SF.V.0451.2000.L.Z4.F0030A.HA 20 104 41 0.3 4 W0451200330

Solid carbide tools / Milling
