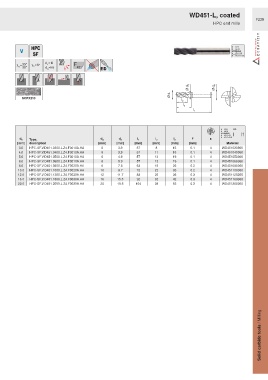

Page 1235 - Ceratizit Catalog

WD451-L, coated
F238
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPX210
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
3.0 HPC-SF.V.D451.0300.L.Z4.F0010A.HA 6 3.9 57 8 15 0.1 4 WD451030360
4.0 HPC-SF.V.D451.0400.L.Z4.F0010A.HA 6 3.9 57 11 16 0.1 4 WD451040360
5.0 HPC-SF.V.D451.0500.L.Z4.F0010A.HA 6 4.9 57 13 19 0.1 4 WD451050360
6.0 HPC-SF.V.D451.0600.L.Z4.F0010A.HA 6 5.9 57 13 19 0.1 4 WD451060360
8.0 HPC-SF.V.D451.0800.L.Z4.F0020A.HA 8 7.8 63 19 25 0.2 4 WD451080360
10.0 HPC-SF.V.D451.1000.L.Z4.F0020A.HA 10 9.7 72 22 30 0.2 4 WD451100360
12.0 HPC-SF.V.D451.1200.L.Z4.F0030A.HA 12 11.7 83 26 36 0.3 4 WD451120360
16.0 HPC-SF.V.D451.1600.L.Z4.F0030A.HA 16 15.5 92 32 42 0.3 4 WD451160360
20.0 HPC-SF.V.D451.2000.L.Z4.F0030A.HA 20 19.5 104 38 52 0.3 4 WD451200360

Solid carbide tools / Milling
