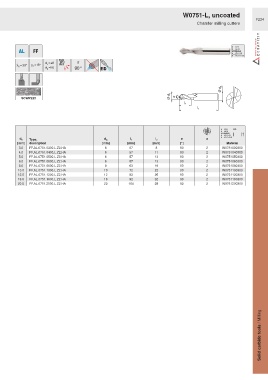

Page 1231 - Ceratizit Catalog

W0751-L, uncoated
F234
Chamfer milling cutters

σ
90°

Ø d A
Ø d 1 σ
SCWP225
l 2
l 1

HA
d 1 Type, d A l 1 l 2 σ z
[mm] description [mm] [mm] [mm] [°] Material
3.0 FF.AL.0751.0300.L.Z2.HA 6 57 8 90 2 W0751030300
4.0 FF.AL.0751.0400.L.Z2.HA 6 57 11 90 2 W0751040300
5.0 FF.AL.0751.0500.L.Z2.HA 6 57 13 90 2 W0751050300
6.0 FF.AL.0751.0600.L.Z2.HA 6 57 13 90 2 W0751060300
8.0 FF.AL.0751.0800.L.Z2.HA 8 63 19 90 2 W0751080300
10.0 FF.AL.0751.1000.L.Z2.HA 10 72 22 90 2 W0751100300
12.0 FF.AL.0751.1200.L.Z2.HA 12 83 26 90 2 W0751120300
16.0 FF.AL.0751.1600.L.Z2.HA 16 92 32 90 2 W0751160300
20.0 FF.AL.0751.2000.L.Z2.HA 20 104 38 90 2 W0751200300

Solid carbide tools / Milling
