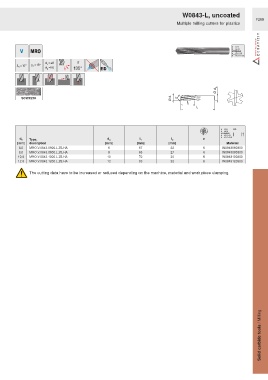

Page 1265 - Ceratizit Catalog

W0843-L, uncoated
F268
Multiple milling cutters for plastics

σ
10°
135°

Ø d A

SCWX210 Ø d 1 σ
l 2
l 1

HA
d 1 Type, d A l 1 l 2 z
[mm] description [mm] [mm] [mm] Material
6.0 MRO.V.0843.0600.L.Z6.HA 6 57 22 6 W0843060300
8.0 MRO.V.0843.0800.L.Z6.HA 8 63 27 6 W0843080300
10.0 MRO.V.0843.1000.L.Z6.HA 10 72 30 6 W0843100300
12.0 MRO.V.0843.1200.L.Z6.HA 12 83 32 6 W0843120300

The cutting data have to be increased or reduced depending on the machine, material and work piece clamping.

Solid carbide tools / Milling
