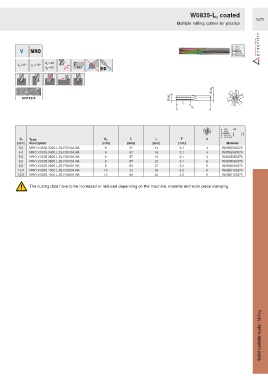

P. 1267

W0835-L, coated
                                                                                                                   F270
                                                                                Multiple milling cutters for plastics
















                                                                                               Ø d A

           SCPX215                                                          Ø d 1
                                                                                  l 2
                                                                                      l 1




                                                                                                         HA
          d 1  Type,                           d A         l 1        l 2        F           z
         [mm]  description                    [mm]        [mm]       [mm]       [mm]                  Material
         3.0  MRO.V.0835.0300.L.Z4.F0010A.HA    6         57          14         0.1         4      W0835030370
         4.0  MRO.V.0835.0400.L.Z4.F0010A.HA    6         57          16         0.1         4      W0835040370
         5.0  MRO.V.0835.0500.L.Z4.F0010A.HA    6         57          18         0.1         4      W0835050370
         6.0  MRO.V.0835.0600.L.Z6.F0010A.HA    6         57          22         0.1         6      W0835060370
         8.0  MRO.V.0835.0800.L.Z6.F0020A.HA    8         63          27         0.2         6      W0835080370
         10.0  MRO.V.0835.1000.L.Z6.F0020A.HA  10         72          30         0.2         6      W0835100370
         12.0  MRO.V.0835.1200.L.Z6.F0030A.HA  12         83          32         0.3         6      W0835120370


              The cutting data have to be increased or reduced depending on the machine, material and work piece clamping.
































                                                                                                                     Solid carbide tools / Milling
