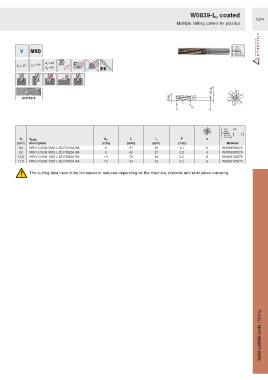

Page 1271 - Ceratizit Catalog
P. 1271
W0839-L, coated
F274
Multiple milling cutters for plastics
10°
Ø d A
SCPX215 Ø d 1
l 2
l 1
HA
d 1 Type, d A l 1 l 2 F z
[mm] description [mm] [mm] [mm] [mm] Material
6.0 MRO.V.0839.0600.L.Z6.F0010A.HA 6 57 22 0.1 6 W0839060370
8.0 MRO.V.0839.0800.L.Z6.F0020A.HA 8 63 27 0.2 6 W0839080370
10.0 MRO.V.0839.1000.L.Z6.F0020A.HA 10 72 30 0.2 6 W0839100370
12.0 MRO.V.0839.1200.L.Z6.F0030A.HA 12 83 32 0.3 6 W0839120370
The cutting data have to be increased or reduced depending on the machine, material and work piece clamping.
Solid carbide tools / Milling
