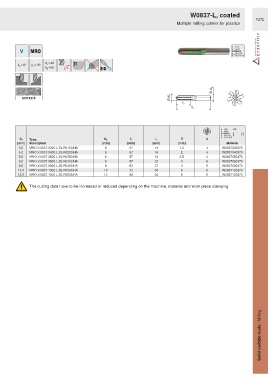

W0837-L, coated
F272
Multiple milling cutters for plastics

R

Ø d A

SCPX215 Ø d 1
l 2
l 1

HA
d 1 Type, d A l 1 l 2 R z
[mm] description [mm] [mm] [mm] [mm] Material
3.0 MRO.V.0837.0300.L.Z4.R0150.HA 6 57 14 1.5 4 W0837030370
4.0 MRO.V.0837.0400.L.Z4.R0200.HA 6 57 16 2 4 W0837040370
5.0 MRO.V.0837.0500.L.Z4.R0250.HA 6 57 18 2.5 4 W0837050370
6.0 MRO.V.0837.0600.L.Z6.R0300.HA 6 57 22 3 6 W0837060370
8.0 MRO.V.0837.0800.L.Z6.R0400.HA 8 63 27 4 6 W0837080370
10.0 MRO.V.0837.1000.L.Z6.R0500.HA 10 72 30 5 6 W0837100370
12.0 MRO.V.0837.1200.L.Z6.R0600.HA 12 83 32 6 6 W0837120370

The cutting data have to be increased or reduced depending on the machine, material and work piece clamping.

Solid carbide tools / Milling
