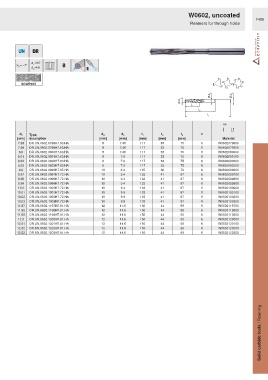

Page 1453 - Ceratizit Catalog

W0602, uncoated
F456
Reamers for through holes

H

SCWP625

Ø d 3 Ø d A
Ø d 1
l 2
l 3
l 1
HA

d 1 Type, d A d 3 l 1 l 2 l 3 z
[mm] description [mm] [mm] [mm] [mm] [mm] Material
7.98 DR.UN.0602.0798H7.63.HA 8 7.46 117 33 75 6 W0602079800
7.99 DR.UN.0602.0799H7.63.HA 8 7.46 117 33 75 6 W0602079900
8.0 DR.UN.0602.0800H7.63.HA 8 7.46 117 33 75 6 W0602080000
8.01 DR.UN.0602.0801H7.63.HA 8 7.9 117 33 75 6 W0602080100
8.02 DR.UN.0602.0802H7.63.HA 8 7.9 117 33 75 6 W0602080200
8.03 DR.UN.0602.0803H7.63.HA 8 7.9 117 33 75 6 W0602080300
9.0 DR.UN.0602.0900H7.65.HA 10 8.4 125 36 79 6 W0602090000
9.97 DR.UN.0602.0997H7.72.HA 10 9.4 133 41 87 6 W0602099700
9.98 DR.UN.0602.0998H7.72.HA 10 9.4 133 41 87 6 W0602099800
9.99 DR.UN.0602.0999H7.72.HA 10 9.4 133 41 87 6 W0602099900
10.0 DR.UN.0602.1000H7.72.HA 10 9.4 133 41 87 6 W0602100000
10.01 DR.UN.0602.1001H7.72.HA 10 9.9 133 41 87 6 W0602100100
10.02 DR.UN.0602.1002H7.72.HA 10 9.9 133 41 87 6 W0602100200
10.03 DR.UN.0602.1003H7.72.HA 10 9.9 133 41 87 6 W0602100300
11.97 DR.UN.0602.1197H7.81.HA 12 11.6 150 44 99 6 W0602119700
11.98 DR.UN.0602.1198H7.81.HA 12 11.6 150 44 99 6 W0602119800
11.99 DR.UN.0602.1199H7.81.HA 12 11.6 150 44 99 6 W0602119900
12.0 DR.UN.0602.1200H7.81.HA 12 11.6 150 44 99 6 W0602120000
12.01 DR.UN.0602.1201H7.81.HA 12 11.6 150 44 99 6 W0602120100
12.02 DR.UN.0602.1202H7.81.HA 12 11.6 150 44 99 6 W0602120200
12.03 DR.UN.0602.1203H7.81.HA 12 11.6 150 44 99 6 W0602120300

Solid carbide tools / Reaming
