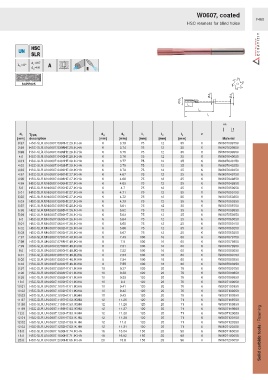

Page 1457 - Ceratizit Catalog

W0607, coated
F460
HSC reamers for blind holes

H

SCPP625

Ø d 3 Ø d A
Ø d 1
l 2
l 3
l 1
HA

d 1 Type, d A d 3 l 1 l 2 l 3 z
[mm] description [mm] [mm] [mm] [mm] [mm] Material
3.97 HSC-SLR.UN.0607.0397H7.29.IK.HA 6 3.73 75 12 35 6 W0607039750
3.98 HSC-SLR.UN.0607.0398H7.29.IK.HA 6 3.74 75 12 35 6 W0607039850
3.99 HSC-SLR.UN.0607.0399H7.29.IK.HA 6 3.75 75 12 35 6 W0607039950
4.0 HSC-SLR.UN.0607.0400H7.29.IK.HA 6 3.76 75 12 35 6 W0607040050
4.01 HSC-SLR.UN.0607.0401H7.29.IK.HA 6 3.77 75 12 35 6 W0607040150
4.02 HSC-SLR.UN.0607.0402H7.29.IK.HA 6 3.78 75 12 35 6 W0607040250
4.03 HSC-SLR.UN.0607.0403H7.29.IK.HA 6 3.79 75 12 35 6 W0607040350
4.97 HSC-SLR.UN.0607.0497H7.27.IK.HA 6 4.67 75 12 35 6 W0607049750
4.98 HSC-SLR.UN.0607.0498H7.27.IK.HA 6 4.68 75 12 35 6 W0607049850
4.99 HSC-SLR.UN.0607.0499H7.27.IK.HA 6 4.69 75 12 35 6 W0607049950
5.0 HSC-SLR.UN.0607.0500H7.27.IK.HA 6 4.7 75 12 35 6 W0607050050
5.01 HSC-SLR.UN.0607.0501H7.27.IK.HA 6 4.71 75 12 35 6 W0607050150
5.02 HSC-SLR.UN.0607.0502H7.27.IK.HA 6 4.72 75 12 35 6 W0607050250
5.03 HSC-SLR.UN.0607.0503H7.27.IK.HA 6 4.73 75 12 35 6 W0607050350
5.97 HSC-SLR.UN.0607.0597H7.26.IK.HA 6 5.61 75 12 35 6 W0607059750
5.98 HSC-SLR.UN.0607.0598H7.26.IK.HA 6 5.62 75 12 35 6 W0607059850
5.99 HSC-SLR.UN.0607.0599H7.26.IK.HA 6 5.63 75 12 35 6 W0607059950
6.0 HSC-SLR.UN.0607.0600H7.26.IK.HA 6 5.64 75 12 35 6 W0607060050
6.01 HSC-SLR.UN.0607.0601H7.26.IK.HA 6 5.65 75 12 35 6 W0607060150
6.02 HSC-SLR.UN.0607.0602H7.26.IK.HA 6 5.66 75 12 35 6 W0607060250
6.03 HSC-SLR.UN.0607.0603H7.26.IK.HA 6 5.67 75 12 35 6 W0607060350
7.97 HSC-SLR.UN.0607.0797H7.48.IK.HA 8 7.49 100 16 60 6 W0607079750
7.98 HSC-SLR.UN.0607.0798H7.48.IK.HA 8 7.5 100 16 60 6 W0607079850
7.99 HSC-SLR.UN.0607.0799H7.48.IK.HA 8 7.51 100 16 60 6 W0607079950
8.0 HSC-SLR.UN.0607.0800H7.48.IK.HA 8 7.52 100 16 60 6 W0607080050
8.01 HSC-SLR.UN.0607.0801H7.48.IK.HA 8 7.53 100 16 60 6 W0607080150
8.02 HSC-SLR.UN.0607.0802H7.48.IK.HA 8 7.54 100 16 60 6 W0607080250
8.03 HSC-SLR.UN.0607.0803H7.48.IK.HA 8 7.55 100 16 60 6 W0607080350
9.97 HSC-SLR.UN.0607.0997H7.61.IK.HA 10 9.37 120 20 76 6 W0607099750
9.98 HSC-SLR.UN.0607.0998H7.61.IK.HA 10 9.38 120 20 76 6 W0607099850
9.99 HSC-SLR.UN.0607.0999H7.61.IK.HA 10 9.39 120 20 76 6 W0607099950
10.0 HSC-SLR.UN.0607.1000H7.61.IK.HA 10 9.4 120 20 76 6 W0607100050
10.01 HSC-SLR.UN.0607.1001H7.61.IK.HA 10 9.41 120 20 76 6 W0607100150
10.02 HSC-SLR.UN.0607.1002H7.61.IK.HA 10 9.42 120 20 76 6 W0607100250
10.03 HSC-SLR.UN.0607.1003H7.61.IK.HA 10 9.43 120 20 76 6 W0607100350
11.97 HSC-SLR.UN.0607.1197H7.53.IK.HA 12 11.25 120 20 71 6 W0607119750
11.98 HSC-SLR.UN.0607.1198H7.53.IK.HA 12 11.26 120 20 71 6 W0607119850
Solid carbide tools / Reaming
11.99 HSC-SLR.UN.0607.1199H7.53.IK.HA 12 11.27 120 20 71 6 W0607119950
12.0 HSC-SLR.UN.0607.1200H7.53.IK.HA 12 11.28 120 20 71 6 W0607120050
12.01 HSC-SLR.UN.0607.1201H7.53.IK.HA 12 11.29 120 20 71 6 W0607120150
12.02 HSC-SLR.UN.0607.1202H7.53.IK.HA 12 11.3 120 20 71 6 W0607120250
12.03 HSC-SLR.UN.0607.1203H7.53.IK.HA 12 11.31 120 20 71 6 W0607120350
16.0 HSC-SLR.UN.0607.1600H7.74.IK.HA 16 15.04 150 25 98 6 W0607160050
18.0 HSC-SLR.UN.0607.1800H7.71.IK.HA 18 16.92 150 25 98 6 W0607180050
20.0 HSC-SLR.UN.0607.2000H7.66.IK.HA 20 18.8 150 25 96 6 W0607200050
