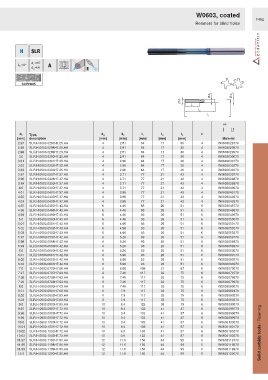

Page 1459 - Ceratizit Catalog

W0603, coated
F462
Reamers for blind holes

H

SCPH605

Ø d 3 Ø d A
Ø d 1
l 2
l 3
l 1
HA

d 1 Type, d A d 3 l 1 l 2 l 3 z
[mm] description [mm] [mm] [mm] [mm] [mm] Material
2.97 SLR.H.0603.0297H7.25.HA 4 2.81 64 17 30 4 W0603029770
2.98 SLR.H.0603.0298H7.25.HA 4 2.81 64 17 30 4 W0603029870
2.99 SLR.H.0603.0299H7.25.HA 4 2.81 64 17 30 4 W0603029970
3.0 SLR.H.0603.0300H7.25.HA 4 2.81 64 17 30 4 W0603030070
3.01 SLR.H.0603.0301H7.25.HA 4 2.96 64 17 30 4 W0603030170
3.02 SLR.H.0603.0302H7.25.HA 4 2.96 64 17 30 4 W0603030270
3.03 SLR.H.0603.0303H7.25.HA 4 2.96 64 17 30 4 W0603030370
3.97 SLR.H.0603.0397H7.37.HA 4 3.71 77 21 43 4 W0603039770
3.98 SLR.H.0603.0398H7.37.HA 4 3.71 77 21 43 4 W0603039870
3.99 SLR.H.0603.0399H7.37.HA 4 3.71 77 21 43 4 W0603039970
4.0 SLR.H.0603.0400H7.37.HA 4 3.71 77 21 43 4 W0603040070
4.01 SLR.H.0603.0401H7.37.HA 4 3.96 77 21 43 4 W0603040170
4.02 SLR.H.0603.0402H7.37.HA 4 3.96 77 21 43 4 W0603040270
4.03 SLR.H.0603.0403H7.37.HA 4 3.96 77 21 43 4 W0603040370
4.97 SLR.H.0603.0497H7.43.HA 6 4.46 93 26 51 6 W0603049770
4.98 SLR.H.0603.0498H7.43.HA 6 4.46 93 26 51 6 W0603049870
4.99 SLR.H.0603.0499H7.43.HA 6 4.46 93 26 51 6 W0603049970
5.0 SLR.H.0603.0500H7.43.HA 6 4.46 93 26 51 6 W0603050070
5.01 SLR.H.0603.0501H7.43.HA 6 4.96 93 26 51 6 W0603050170
5.02 SLR.H.0603.0502H7.43.HA 6 4.96 93 26 51 6 W0603050270
5.03 SLR.H.0603.0503H7.43.HA 6 4.96 93 26 51 6 W0603050370
5.97 SLR.H.0603.0597H7.42.HA 6 5.26 93 26 51 6 W0603059770
5.98 SLR.H.0603.0598H7.42.HA 6 5.26 93 26 51 6 W0603059870
5.99 SLR.H.0603.0599H7.42.HA 6 5.26 93 26 51 6 W0603059970
6.0 SLR.H.0603.0600H7.42.HA 6 5.26 93 26 51 6 W0603060070
6.01 SLR.H.0603.0601H7.42.HA 6 5.96 93 26 51 6 W0603060170
6.02 SLR.H.0603.0602H7.42.HA 6 5.96 93 26 51 6 W0603060270
6.03 SLR.H.0603.0603H7.42.HA 6 5.96 93 26 51 6 W0603060370
7.0 SLR.H.0603.0700H7.56.HA 8 6.66 109 31 67 6 W0603070070
7.97 SLR.H.0603.0797H7.63.HA 8 7.46 117 33 75 6 W0603079770
7.98 SLR.H.0603.0798H7.63.HA 8 7.46 117 33 75 6 W0603079870
7.99 SLR.H.0603.0799H7.63.HA 8 7.46 117 33 75 6 W0603079970
8.0 SLR.H.0603.0800H7.63.HA 8 7.46 117 33 75 6 W0603080070
8.01 SLR.H.0603.0801H7.63.HA 8 7.9 117 33 75 6 W0603080170
8.02 SLR.H.0603.0802H7.63.HA 8 7.9 117 33 75 6 W0603080270
8.03 SLR.H.0603.0803H7.63.HA 8 7.9 117 33 75 6 W0603080370
9.0 SLR.H.0603.0900H7.65.HA 10 8.4 125 36 79 6 W0603090070
9.97 SLR.H.0603.0997H7.72.HA 10 9.4 133 41 87 6 W0603099770
9.98 SLR.H.0603.0998H7.72.HA 10 9.4 133 41 87 6 W0603099870
9.99 SLR.H.0603.0999H7.72.HA 10 9.4 133 41 87 6 W0603099970
10.0 SLR.H.0603.1000H7.72.HA 10 9.4 133 41 87 6 W0603100070
10.01 SLR.H.0603.1001H7.72.HA 10 9.9 133 41 87 6 W0603100170
10.02 SLR.H.0603.1002H7.72.HA 10 9.9 133 41 87 6 W0603100270 Solid carbide tools / Reaming
10.03 SLR.H.0603.1003H7.72.HA 10 9.9 133 41 87 6 W0603100370
11.97 SLR.H.0603.1197H7.81.HA 12 11.6 150 44 99 6 W0603119770
11.98 SLR.H.0603.1198H7.81.HA 12 11.6 150 44 99 6 W0603119870
11.99 SLR.H.0603.1199H7.81.HA 12 11.6 150 44 99 6 W0603119970
12.0 SLR.H.0603.1200H7.81.HA 12 11.6 150 44 99 6 W0603120070
