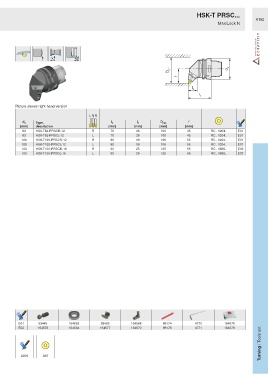

Page 213 - Ceratizit Catalog
P. 213
HSK-T PRSC...
A192
MaxiLock N
D min d A
f
l
2
l
1
Picture shows right-hand version
L N R
d A Type, l 1 l 2 D min f
[mm] description [mm] [mm] [mm] [mm]
63 HSK-T63-PRSCR-12 R 70 26 100 45 RC.. 1204.. E01
63 HSK-T63-PRSCL-12 L 70 26 100 45 RC.. 1204.. E01
100 HSK-T100-PRSCR-12 R 80 19 106 55 RC.. 1204.. E01
100 HSK-T100-PRSCL-12 L 80 19 106 55 RC.. 1204.. E01
100 HSK-T100-PRSCR-16 R 80 25 125 55 RC.. 1606.. E02
100 HSK-T100-PRSCL-16 L 80 25 125 55 RC.. 1606.. E02
E01 59445 154563 59436 154568 86174 4770 154578
Turning / Tools ext.
E02 154575 154564 154577 154570 86176 4771 154579
