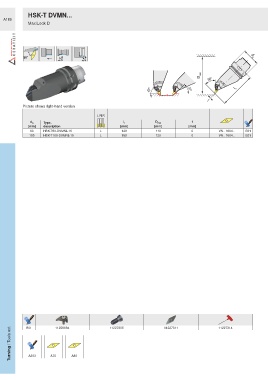

Page 210 - Ceratizit Catalog
P. 210
HSK-T DVMN...
A189
MaxiLock D
d
50° A
D min
50°
47° 47° l 1
f
Picture shows right-hand version
L N R
d A Type, l 1 D min f
[mm] description [mm] [mm] [mm]
63 HSK-T63-DVMNL-16 L 130 110 0 VN.. 1604.. E01
100 HSK-T100-DVMNL-16 L 160 120 0 VN.. 1604.. E01
Turning / Tools ext. E01 A76 11258694 A80 11227305 11227311 11227314
