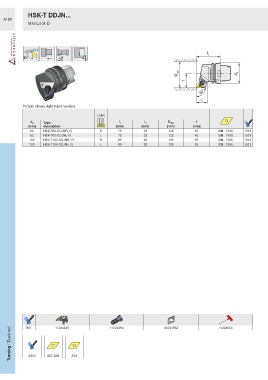

Page 206 - Ceratizit Catalog
P. 206
HSK-T DDJN...
A185
MaxiLock D
l
1
93°
D min d A
f
93°
l
2
Picture shows right-hand version
L N R
d A Type, l 1 l 2 D min f
[mm] description [mm] [mm] [mm] [mm]
63 HSK-T63-DDJNR-15 R 75 33 125 45 DN.. 1506.. E01
63 HSK-T63-DDJNL-15 L 75 33 125 45 DN.. 1506.. E01
100 HSK-T100-DDJNR-15 R 85 33 125 55 DN.. 1506.. E01
100 HSK-T100-DDJNL-15 L 85 33 125 55 DN.. 1506.. E01
Turning / Tools ext. E01 A67-A69 A79 11224494 11211562 11224503
