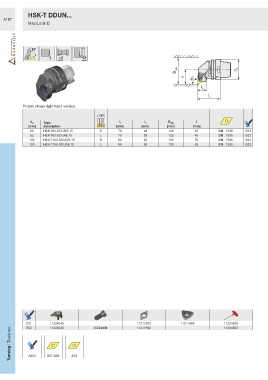

Page 208 - Ceratizit Catalog
P. 208
HSK-T DDUN...
A187
MaxiLock D
93°
D min d A
93°
f
l
2
l 1
Picture shows right-hand version
L N R
d A Type, l 1 l 2 D min f
[mm] description [mm] [mm] [mm] [mm]
63 HSK-T63-DDUNR-15 R 70 28 125 45 DN.. 1506.. E01
63 HSK-T63-DDUNL-15 L 70 28 125 45 DN.. 1506.. E02
100 HSK-T100-DDUNR-15 R 80 26 125 55 DN.. 1506.. E02
100 HSK-T100-DDUNL-15 L 80 26 125 55 DN.. 1506.. E02
E01 11224545 11224494 11211562 11211563 11224503
Turning / Tools ext. A303 A67-A69 A79
E02
11224545
11211562
11224503
