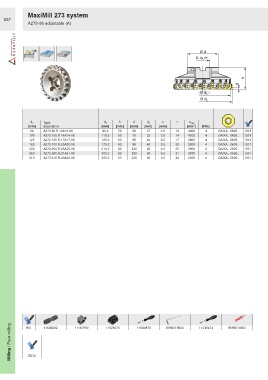

Page 394 - Ceratizit Catalog

MaxiMill 273 system
B67
A273-06 adjustable (A)

Ø d
Ø d A H6

h

a

Ø d 1
Ø d 2

d 1 Type, d 2 h d d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [mm] [min ] [Nm]

80 A273.80.R.10A10-06 90.2 50 58 27 3.5 10 4800 4 OA/XA.. 0605.. E01

100 A273.100.R.14A14-06 110.3 50 78 32 3.5 14 4200 4 OA/XA.. 0605.. E01

125 A273.125.R.17A17-06 135.2 63 88 40 3.5 17 3800 4 OA/XA.. 0605.. E01

160 A273.160.R.20A20-06 170.2 63 88 40 3.5 20 3300 4 OA/XA.. 0605.. E01

200 A273.200.R.25A25-06 210.2 63 132 60 3.5 25 2900 4 OA/XA.. 0605.. E01
250 A273.250.R.31A31-06 260.2 63 132 60 3.5 31 2600 4 OA/XA.. 0605.. E01

315 A273.315.R.40A40-06 325.2 63 226 60 3.5 40 2300 4 OA/XA.. 0605.. E01

Milling / Face milling E01 11529282 11167992 11529276 11534870 8095018900 11210474 8095010500

B276
