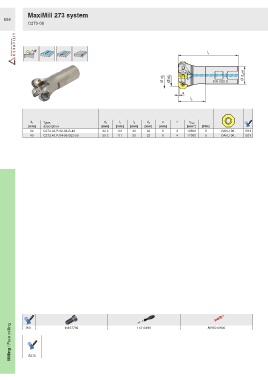

P. 396
MaxiMill 273 system
B69
C273-06
l 1
d 2 d 1 Ø d A h6
Ø Ø DIN 1835 B
a
l 2
d 1 Type, d 2 l 1 l 2 d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [mm] [min ] [Nm]
32 C273.32.R.03-06-B-40 42.2 101 40 32 6 3 19600 5 OAKU 06.. E01
40 C273.40.R.04-06-B32-50 50.2 111 50 32 6 4 17000 5 OAKU 06.. E01
Milling / Face milling E01 11107792 11210490 8095010600
B276
