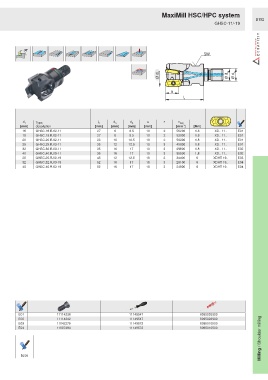

Page 479 - Ceratizit Catalog
P. 479
MaxiMill HSC/HPC system
B152
GHSC-11/-19
SW
Ø d 1 Ø d G Ø d A
a
l
2
d 1 Type, l 2 d G d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]
16 GHSC.16.R.02-11 27 8 8.5 10 2 56200 1.8 XD.. 11.. E01
18 GHSC.18.R.02-11 27 8 8.5 10 2 53000 1.8 XD.. 11.. E01
20 GHSC.20.R.02-11 33 10 10.5 10 2 50300 1.8 XD.. 11.. E01
25 GHSC.25.R.03-11 35 12 12.5 10 3 45000 1.8 XD.. 11.. E01
32 GHSC.32.R.03-11 35 16 17 10 3 39800 1.8 XD.. 11.. E02
40 GHSC.40.R.03-11 35 16 17 10 3 35500 1.8 XD.. 11.. E02
25 GHSC.25.R.02-19 45 12 12.5 18 2 34400 6 XDHT 19.. E03
32 GHSC.32.R.03-19 52 16 17 18 3 29100 6 XDHT 19.. E04
40 GHSC.40.R.03-19 52 16 17 18 3 24900 6 XDHT 19.. E04
E01 11114238 11149547 8095003900
Milling / Shoulder milling
E02 11114242 11149547 8095003900
E03 11042275 11149572 8095010500
E04 11037484 11149572 8095010500
B276
