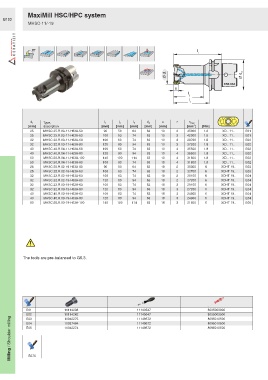

Page 480 - Ceratizit Catalog

MaxiMill HSC/HPC system
B153
MHSC-11/-19

l
1

Ø d 1 Ø d A

HSK 63A
a

l
2
l
3

d 1 Type, l 1 l 2 l 3 d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [mm] [min ] [Nm]

25 MHSC.25.R.03-11-H63A-50 90 50 64 63 10 3 45000 1.8 XD.. 11.. E01

25 MHSC.25.R.03-11-H63A-63 100 63 74 63 10 3 42000 1.8 XD.. 11.. E01

32 MHSC.32.R.03-11-H63A-63 100 63 74 63 10 3 39700 1.8 XD.. 11.. E02

32 MHSC.32.R.03-11-H63A-80 120 80 94 63 10 3 37200 1.8 XD.. 11.. E02

40 MHSC.40.R.04-11-H63A-63 100 63 74 63 10 4 35500 1.8 XD.. 11.. E02

40 MHSC.40.R.04-11-H63A-80 120 80 94 63 10 4 35500 1.8 XD.. 11.. E02
50 MHSC.50.R.04-11-H63A-100 140 100 114 63 10 4 31800 1.8 XD.. 11.. E02

50 MHSC.50.R.04-11-H63A-63 100 63 74 63 10 4 31800 1.8 XD.. 11.. E02

25 MHSC.25.R.02-19-H63A-50 90 50 64 63 18 2 35000 6 XDHT 19.. E03

25 MHSC.25.R.02-19-H63A-63 100 63 74 63 18 2 32700 6 XDHT 19.. E03
32 MHSC.32.R.02-19-H63A-63 100 63 74 63 18 2 29100 6 XDHT 19.. E04

32 MHSC.32.R.02-19-H63A-80 120 80 94 63 18 2 27200 6 XDHT 19.. E04

32 MHSC.32.R.03-19-H63A-63 100 63 74 63 18 3 29100 6 XDHT 19.. E04

32 MHSC.32.R.03-19-H63A-80 120 80 94 63 18 3 27200 6 XDHT 19.. E04

40 MHSC.40.R.03-19-H63A-63 100 63 74 63 18 3 24900 6 XDHT 19.. E04

40 MHSC.40.R.03-19-H63A-80 120 80 94 63 18 3 24900 6 XDHT 19.. E04

50 MHSC.50.R.03-19-H63A-100 140 100 114 63 18 3 21600 6 XDHT 19.. E05

The tools are pre-balanced to G6.3.
E01 11114238 11149547 8095003900
E02 11114242 11149547 8095003900
Milling / Shoulder milling E05 11042274 11149572 8095010500
11149572
E03
11042275
8095010500
8095010500
11037484
E04
11149572
