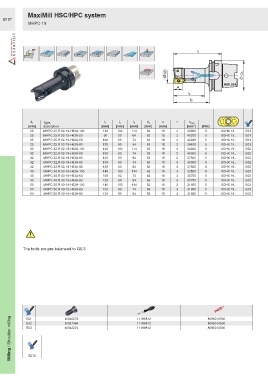

P. 484
MaxiMill HSC/HPC system
B157
MHPC-19
l 1
Ø d 1 Ø d A
HSK 63A
a
l 2
l 3
d 1 Type, l 1 l 2 l 3 d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [mm] [min ] [Nm]
25 MHPC.25.R.02-19-H63A-100 140 100 114 63 18 2 33900 5 XDHX 19.. E01
25 MHPC.25.R.02-19-H63A-50 90 50 64 63 18 2 45200 5 XDHX 19.. E01
25 MHPC.25.R.02-19-H63A-63 100 63 74 63 18 2 42300 5 XDHX 19.. E01
25 MHPC.25.R.02-19-H63A-80 120 80 94 63 18 2 38400 5 XDHX 19.. E01
32 MHPC.32.R.02-19-H63A-100 140 100 114 63 18 2 34300 5 XDHX 19.. E02
32 MHPC.32.R.02-19-H63A-63 100 63 74 63 18 2 40000 5 XDHX 19.. E02
32 MHPC.32.R.02-19-H63A-80 120 80 94 63 18 2 37500 5 XDHX 19.. E02
32 MHPC.32.R.03-19-H63A-63 100 63 74 63 18 3 40000 5 XDHX 19.. E02
32 MHPC.32.R.03-19-H63A-80 120 80 94 63 18 3 37500 5 XDHX 19.. E02
40 MHPC.40.R.03-19-H63A-100 140 100 114 63 18 3 33500 5 XDHX 19.. E02
40 MHPC.40.R.03-19-H63A-63 100 63 74 63 18 3 35700 5 XDHX 19.. E02
40 MHPC.40.R.03-19-H63A-80 120 80 94 63 18 3 35700 5 XDHX 19.. E02
50 MHPC.50.R.03-19-H63A-100 140 100 114 63 18 3 31900 5 XDHX 19.. E03
50 MHPC.50.R.03-19-H63A-63 100 63 74 63 18 3 31900 5 XDHX 19.. E03
50 MHPC.50.R.03-19-H63A-80 120 80 94 63 18 3 31900 5 XDHX 19.. E03
The tools are pre-balanced to G6.3.
Milling / Shoulder milling E01 11042275 11186812 8095010500
11037484
11186812
E02
8095010500
8095010500
11186812
E03
11042274
B276
