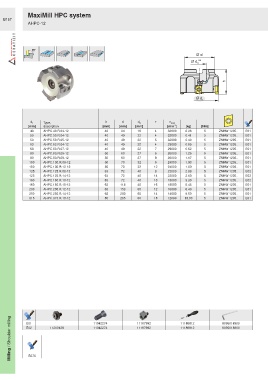

Page 494 - Ceratizit Catalog

MaxiMill HPC system
B167
AHPC-12

90°
Ø d
H6
Ø d A

h

Ø d 1

d 1 Type, h d d A z n max
-1
[mm] description [mm] [mm] [mm] [min ] [kg] [Nm]

40 AHPC.40.R.04-12 40 34 16 4 32000 0.28 5 ZNHW 1205.. E01

50 AHPC.50.R.04-12 40 49 22 4 32000 0.41 5 ZNHW 1205.. E01

50 AHPC.50.R.05-12 40 49 22 5 32000 0.40 5 ZNHW 1205.. E01

63 AHPC.63.R.04-12 40 49 22 4 29000 0.65 5 ZNHW 1205.. E01

63 AHPC.63.R.07-12 40 49 22 7 29000 0.62 5 ZNHW 1205.. E01
80 AHPC.80.R.05-12 50 60 27 5 26000 1.25 5 ZNHW 1205.. E01

80 AHPC.80.R.09-12 50 60 27 9 26000 1.17 5 ZNHW 1205.. E01

100 AHPC.100.R.06-12 50 70 32 6 24000 1.93 5 ZNHW 1205.. E01

100 AHPC.100.R.12-12 50 70 32 12 24000 1.80 5 ZNHW 1205.. E01

125 AHPC.125.R.08-12 63 72 40 8 22000 2.88 5 ZNHW 1205.. E02

125 AHPC.125.R.14-12 63 72 40 14 22000 2.60 5 ZNHW 1205.. E02

160 AHPC.160.R.10-12 63 72 40 10 18000 3.30 5 ZNHW 1205.. E02

160 AHPC.160.R.16-12 63 118 40 16 18000 5.45 5 ZNHW 1205.. E01

200 AHPC.200.R.12-12 63 153 60 12 16000 6.40 5 ZNHW 1205.. E01

250 AHPC.250.R.14-12 63 200 60 14 14000 9.60 5 ZNHW 1205.. E01

315 AHPC.315.R.18-12 80 265 60 18 12000 18.00 5 ZNHW 1205.. E01

Milling / Shoulder milling E01 11210129 11042274 11167992 11186812 8095018900
11167992
11042274
8095018900
