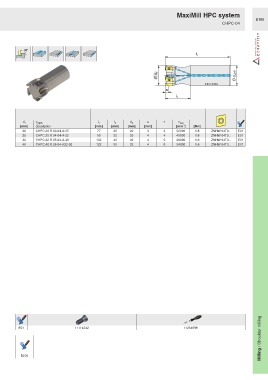

Page 495 - Ceratizit Catalog

MaxiMill HPC system
B168
CHPC-04

90°
l 1

Ø d 1 Ø d A h6

DIN 1835A
a

l 2

d 1 Type, l 1 l 2 d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]

20 CHPC.20.R.03-04-A-25 77 25 20 4 3 52000 1.6 ZNHW 04T3.. E01

25 CHPC.25.R.04-04-A-32 90 32 25 4 4 45000 1.6 ZNHW 04T3.. E01

32 CHPC.32.R.05-04-A-40 102 40 32 4 5 39000 1.6 ZNHW 04T3.. E01

40 CHPC.40.R.06-04-A32-50 122 50 32 4 6 34000 1.6 ZNHW 04T3.. E01

Milling / Shoulder milling
E01 11114242 11254598
