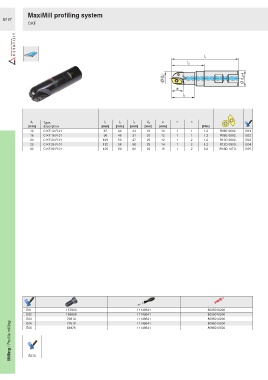

MaxiMill profiling system
B197
CKF
l
1
l
2
Ø d 1 Ø d A h6
a
l 3
d 1 Type, l 1 l 2 l 3 d A a z n
[mm] description [mm] [mm] [mm] [mm] [mm] [Nm]
12 C KF.12.R.01 87 39 24 16 10 1 1 1.2 R06E 0602.. E01
16 C KF.16.R.01 96 46 31 20 12 1 1 1.2 R08E 0803.. E02
20 C KF.20.R.01 109 53 37 25 12 1 2 1.2 R10D 0602.. E03
25 C KF.25.R.01 112 56 56 25 14 1 2 1.2 R12D 0803.. E04
32 C KF.32.R.01 120 60 60 32 16 1 2 3.2 R16D 10T3.. E05
E01 157823 11149541 8095010200
E02 169856 11149541 8095010200
E03 76913 11149541 8095010200
Milling / Profile milling B276
77613
8095010200
E04
11149541
11149541
8095010500
E05
54976
