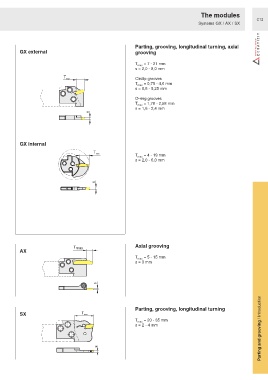

The modules
C12
Systems GX / AX / SX
Parting, grooving, longitudinal turning, axial
GX external grooving
T = 7 - 21 mm
max
s = 2,0 - 8,0 mm
Circlip grooves
T max
T = 0,75 - 4,0 mm
max
s = 0,6 - 5,25 mm
O-ring grooves
T = 1,78 - 2,58 mm
max
s = 1,6 - 2,4 mm
s
GX internal
T max
T max = 4 - 19 mm
s = 2,0 - 6,0 mm
s
Axial grooving
T max
AX
T max = 5 - 15 mm
s = 3 mm
s
Parting and grooving / Introduction
Parting, grooving, longitudinal turning
SX T max
T = 20 - 35 mm
max
s = 2 - 4 mm
s
