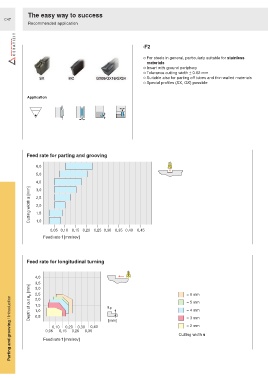

Page 652 - Ceratizit Catalog

The easy way to success
C47
Recommended application

-F2

○ For steels in general, particularly suitable for stainless
materials
○ Insert with ground periphery
○ Tolerance cutting width ± 0.02 mm
○ Suitable also for parting off tubes and thin-walled materials
○ Special profiles (SX, GX) possible

Application

Feed rate for parting and grooving

6,0
5,0
4,0
Cutting width s [mm] 2,5
3,0

2,0

1,5
1,0
0,05 0,10 0,15 0,20 0,25 0,30 0,35 0,40 0,45
Feed rate f [mm/rev]

Feed rate for longitudinal turning

4,0
3,5 = 6 mm
Depth of cut a p [mm]
3,0
2,5
Parting and grooving / Introduction 1,0 Feed rate f [mm/rev] 0,35 0,40 a p Cutting width s
2,0
= 5 mm
1,5
= 4 mm
0,5
= 3 mm
[mm]
= 2 mm
0,20
0,10
0,30
0,05
0,25
0,15
