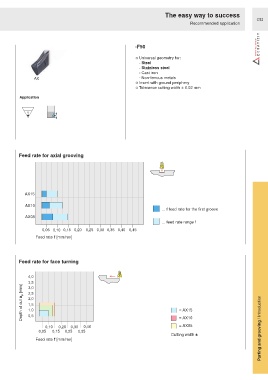

Page 657 - Ceratizit Catalog

The easy way to success
C52
Recommended application

-F50

○ Universal geometry for:
- Steel
- Stainless steel
- Cast iron
- Non-ferrous metals
○ Insert with ground periphery
○ Tolerance cutting width ± 0.02 mm

Application

Feed rate for axial grooving

AX15

AX10
... f feed rate for the first groove
AX05
... feed rate range f
0,05 0,10 0,15 0,20 0,25 0,30 0,35 0,40 0,45
Feed rate f [mm/rev]

Feed rate for face turning

4,0
3,5
Depth of cut a p [mm] 2,5 = AX15
3,0
2,0
1,5
1,0
0,5

= AX05
0,10 0,20 0,30 0,40 = AX10 Parting and grooving / Introduction
0,05 0,15 0,25 0,35
Cutting width s
Feed rate f [mm/rev]
