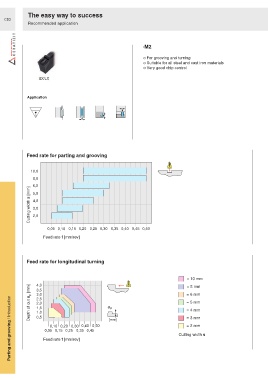

P. 658
The easy way to success
C53
Recommended application
-M2
○ For grooving and turning
○ Suitable for all steel and cast iron materials
○ Very good chip control
Application
Feed rate for parting and grooving
10,0
8,0
6,0
Cutting width s [mm] 4,0
5,0
3,0
2,0
0,05 0,10 0,15 0,20 0,25 0,30 0,35 0,40 0,45 0,50
Feed rate f [mm/rev]
Feed rate for longitudinal turning
= 10 mm
4,0
Depth of cut a p [mm]
= 8 mm
3,5
3,0
= 6 mm
Parting and grooving / Introduction 1,5 Feed rate f [mm/rev] a p Cutting width s
2,5
= 5 mm
2,0
= 4 mm
1,0
0,5
= 3 mm
[mm]
= 2 mm
0,10 0,20 0,30 0,40 0,50
0,05 0,15 0,25 0,35 0,45
