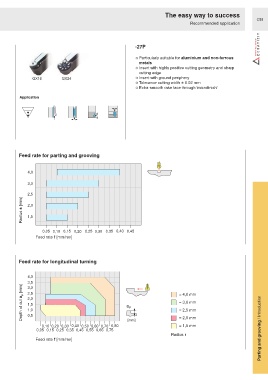

Page 663 - Ceratizit Catalog

The easy way to success
C58
Recommended application

-27P

○ Particularly suitable for aluminium and non-ferrous
metals
○ Insert with highly positive cutting geometry and sharp
cutting edge
○ Insert with ground periphery
○ Tolerance cutting width ± 0.02 mm
○ Extra-smooth rake face through 'microfinish'

Application

Feed rate for parting and grooving

4,0

3,0

2,5
Radius s [mm] 1,5
2,0

0,05 0,10 0,15 0,20 0,25 0,30 0,35 0,40 0,45
Feed rate f [mm/rev]

Feed rate for longitudinal turning

4,0
3,5
Depth of cut a p [mm] 2,5 a p = 4,0 mm
3,0
2,0
= 3,0 mm
1,5
= 2,5 mm
1,0
0,5
= 1,5 mm
0,10 0,20 0,30 0,40 0,50 0,60 0,70 0,80 [mm] = 2,0 mm
0,05 0,15 0,25 0,35 0,45 0,55 0,65 0,75 Parting and grooving / Introduction
Radius r
Feed rate f [mm/rev]
