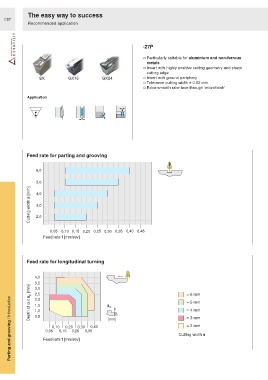

Page 662 - Ceratizit Catalog

The easy way to success
C57
Recommended application

-27P

○ Particularly suitable for aluminium and non-ferrous
metals
○ Insert with highly positive cutting geometry and sharp
cutting edge
○ Insert with ground periphery
○ Tolerance cutting width ± 0.02 mm
○ Extra-smooth rake face through 'microfinish'

Application

Feed rate for parting and grooving

6,0

5,0
Cutting width s [mm] 4,0

3,0

2,0

0,05 0,10 0,15 0,20 0,25 0,30 0,35 0,40 0,45
Feed rate f [mm/rev]

Feed rate for longitudinal turning

4,0
3,5 = 6 mm
Depth of cut a p [mm]
3,0
2,5
Parting and grooving / Introduction 1,0 Feed rate f [mm/rev] 0,35 0,40 a p Cutting width s
2,0
= 5 mm
1,5
= 4 mm
0,5
= 3 mm
[mm]
= 2 mm
0,20
0,30
0,10
0,05
0,25
0,15
