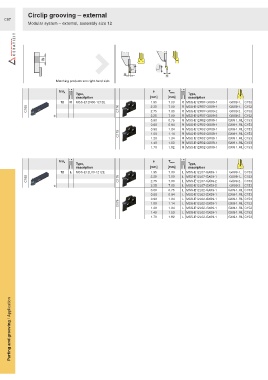

Page 692 - Ceratizit Catalog

Circlip grooving – external
C87
Modular system – external, assembly size 12

T max T max
s s
Matching products see right-hand side.

L R L R
h/d A s T max
Type, Type,
description [mm] [mm] description
12 R MSS-E12R00-1212E 1.95 7.00 R MSS-E12R07-GX09-1 GX09-1.. C153
C168 C176 2.25 7.00 R MSS-E12R07-GX09-1 GX09-1.. C153
R MSS-E12R07-GX09-2
GX09-2.. C153
2.75
7.00
0 3.25 7.00 R MSS-E12R07-GX09-2 GX09-2.. C153
0.60 0.75 R MSS-E12R02-GX09-1 GX09-1..R/L C153
0.80 0.94 R MSS-E12R02-GX09-1 GX09-1..R/L C153
0.90 1.04 R MSS-E12R02-GX09-1 GX09-1..R/L C153
C179 1.00 1.14 R MSS-E12R02-GX09-1 GX09-1..R/L C153
1.20 1.34 R MSS-E12R02-GX09-1 GX09-1..R/L C153
1.40 1.53 R MSS-E12R02-GX09-1 GX09-1..R/L C153
1.70 1.82 R MSS-E12R02-GX09-1 GX09-1..R/L C153
L R L R
h/d A s T max
Type, Type,
description [mm] [mm] description
12 L MSS-E12L00-1212E 1.95 7.00 L MSS-E12L07-GX09-1 GX09-1.. C153
C168 C176 2.25 7.00 L MSS-E12L07-GX09-1 GX09-1.. C153
L MSS-E12L07-GX09-2
7.00
2.75
GX09-2.. C153
0 3.25 7.00 L MSS-E12L07-GX09-2 GX09-2.. C153
0.60 0.75 L MSS-E12L02-GX09-1 GX09-1..R/L C153
0.80 0.94 L MSS-E12L02-GX09-1 GX09-1..R/L C153
0.90 1.04 L MSS-E12L02-GX09-1 GX09-1..R/L C153
C179 1.00 1.14 L MSS-E12L02-GX09-1 GX09-1..R/L C153
1.20 1.34 L MSS-E12L02-GX09-1 GX09-1..R/L C153
1.40 1.53 L MSS-E12L02-GX09-1 GX09-1..R/L C153
1.70 1.82 L MSS-E12L02-GX09-1 GX09-1..R/L C153

Parting and grooving / Application
