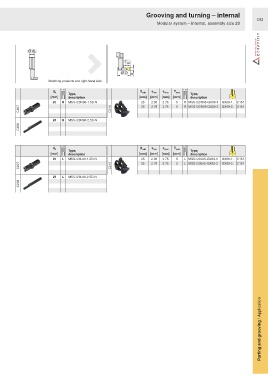

Page 687 - Ceratizit Catalog

Grooving and turning – internal
C82
Modular system – internal, assembly size 20

T max

Ø D s
Matching products see right-hand side.

L R L R
d A D min s min s max T max
Type, Type,
[mm] description [mm] [mm] [mm] [mm] description
20 R MSS-I20R90-1.5D-N 25 2.00 2.75 5 R MSS-I20R05-GX09-1 GX09-1.. C151
C207 C210 25 2.76 3.75 5 R MSS-I20R05-GX09-2 GX09-2.. C151

25 R MSS-I20R90-2.5D-N
C208

L R L R
d A D min s min s max T max
Type, Type,
[mm] description [mm] [mm] [mm] [mm] description
20 L MSS-I20L90-1.5D-N 25 2.00 2.75 5 L MSS-I20L05-GX09-1 GX09-1.. C151
C207 C210 25 2.76 3.75 5 L MSS-I20L05-GX09-2 GX09-2.. C151

25 L MSS-I20L90-2.5D-N
C208

Parting and grooving / Application
