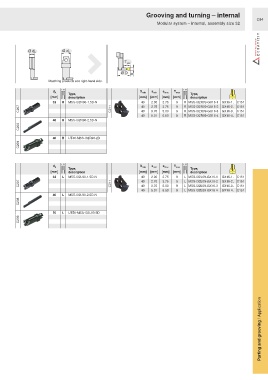

Page 689 - Ceratizit Catalog

Grooving and turning – internal
C84
Modular system – internal, assembly size 32

Ø d A

T max

Ø D s
Matching products see right-hand side.

L R L R
d A D min s min s max T max
Type, Type,
[mm] description [mm] [mm] [mm] [mm] description
32 R MSS-I32R90-1.5D-N 40 2.00 2.75 9 R MSS-I32R09-GX16-1 GX16-1.. C151
C207 C211 40 2.76 3.75 9 9 R MSS-I32R09-GX16-2 GX16-2.. C151
R MSS-I32R09-GX16-3
GX16-3.. C151
3.76
5.00
40
40 5.01 6.50 9 R MSS-I32R09-GX16-4 GX16-4.. C151
40 R MSS-I32R90-2.5D-N
C208

40 R UT40-MSS-I32R90-2D
C209

L R L R
d A D min s min s max T max
Type, Type,
[mm] description [mm] [mm] [mm] [mm] description
32 L MSS-I32L90-1.5D-N 40 2.00 2.75 9 L MSS-I32L09-GX16-1 GX16-1.. C151
C207 C211 40 2.76 3.75 9 9 L MSS-I32L09-GX16-2 GX16-2.. C151
3.76
5.00
GX16-3.. C151
L MSS-I32L09-GX16-3
40
40 5.01 6.50 9 L MSS-I32L09-GX16-4 GX16-4.. C151
40 L MSS-I32L90-2.5D-N
C208

50 L UT50-MSS-I32L90-2D
C209

Parting and grooving / Application
