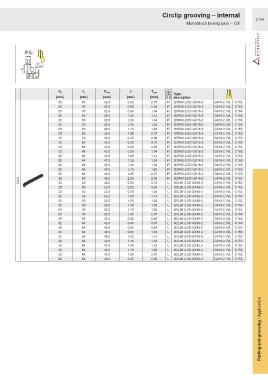

Circlip grooving – internal
C104
Monoblock boring bars – GX

L R
s
d A l 2 D min T max
Type,
[mm] [mm] [mm] [mm] [mm] description
25 50 32.0 0.60 0.75 R I25R90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 0.80 0.94 R I25R90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 0.90 1.04 R I25R90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 1.00 1.14 R I25R90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 1.20 1.34 R I25R90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 1.40 1.53 R I25R90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 1.70 1.82 R I25R90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 1.95 2.07 R I25R90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 2.25 2.36 R I25R90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 0.60 0.75 R I32R90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 0.80 0.94 R I32R90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 0.90 1.04 R I32R90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 1.00 1.14 R I32R90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 1.20 1.34 R I32R90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 1.40 1.53 R I32R90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 1.70 1.82 R I32R90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 1.95 2.07 R I32R90-2.0D-GX16-2 GX16-2..R/L C153
C216 32 64 42.0 2.25 2.36 R I32R90-2.0D-GX16-2 GX16-2..R/L C153
C153
L
0.75
32.0
25
GX16-2..R/L
0.60
I25L90-2.0D-GX16-2
50
25 50 32.0 0.80 0.94 L I25L90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 0.90 1.04 L I25L90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 1.00 1.14 L I25L90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 1.20 1.34 L I25L90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 1.40 1.53 L I25L90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 1.70 1.82 L I25L90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 1.95 2.07 L I25L90-2.0D-GX16-2 GX16-2..R/L C153
25 50 32.0 2.25 2.36 L I25L90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 0.60 0.75 L I32L90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 0.80 0.94 L I32L90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 0.90 1.04 L I32L90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 1.00 1.14 L I32L90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 1.20 1.34 L I32L90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 1.40 1.53 L I32L90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 1.70 1.82 L I32L90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 1.95 2.07 L I32L90-2.0D-GX16-2 GX16-2..R/L C153
32 64 42.0 2.25 2.36 L I32L90-2.0D-GX16-2 GX16-2..R/L C153
