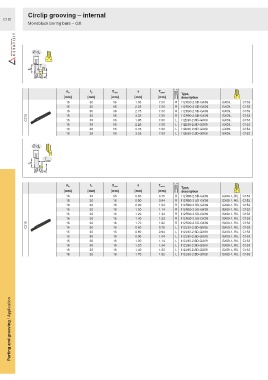

Page 706 - Ceratizit Catalog

Circlip grooving – internal
C101
Monoblock boring bars – GX

Ø d A

T max
l 2
Ø D s

L R
s
d A l 2 D min T max
Type,
[mm] [mm] [mm] [mm] [mm] description
16 30 16 1.95 7.00 R I12R90-2.5D-GX09 GX09.. C153
16 30 16 2.25 7.00 R I12R90-2.5D-GX09 GX09.. C153
16 30 16 2.75 7.00 R I12R90-2.5D-GX09 GX09.. C153
C215 16 30 16 3.25 7.00 R I12R90-2.5D-GX09 GX09.. C153
16
L
1.95
GX09..
I12L90-2.5D-GX09
C153
30
16
7.00
16 30 16 2.25 7.00 L I12L90-2.5D-GX09 GX09.. C153
16 30 16 2.75 7.00 L I12L90-2.5D-GX09 GX09.. C153
16 30 16 3.25 7.00 L I12L90-2.5D-GX09 GX09.. C153

L R
s
d A l 2 D min T max
Type,
[mm] [mm] [mm] [mm] [mm] description
16 30 16 0.60 0.75 R I12R90-2.5D-GX09 GX09-1..R/L C153
16 30 16 0.80 0.94 R I12R90-2.5D-GX09 GX09-1..R/L C153
16 30 16 0.90 1.04 R I12R90-2.5D-GX09 GX09-1..R/L C153
16 30 16 1.00 1.14 R I12R90-2.5D-GX09 GX09-1..R/L C153
16 30 16 1.20 1.34 R I12R90-2.5D-GX09 GX09-1..R/L C153
16 30 16 1.40 1.53 R I12R90-2.5D-GX09 GX09-1..R/L C153
C215 16 30 16 1.70 1.82 R I12R90-2.5D-GX09 GX09-1..R/L C153
C153
I12L90-2.5D-GX09
L
GX09-1..R/L
30
16
16
0.75
0.60
16 30 16 0.80 0.94 L I12L90-2.5D-GX09 GX09-1..R/L C153
16 30 16 0.90 1.04 L I12L90-2.5D-GX09 GX09-1..R/L C153
16 30 16 1.00 1.14 L I12L90-2.5D-GX09 GX09-1..R/L C153
16 30 16 1.20 1.34 L I12L90-2.5D-GX09 GX09-1..R/L C153
16 30 16 1.40 1.53 L I12L90-2.5D-GX09 GX09-1..R/L C153
16 30 16 1.70 1.82 L I12L90-2.5D-GX09 GX09-1..R/L C153

Parting and grooving / Application
