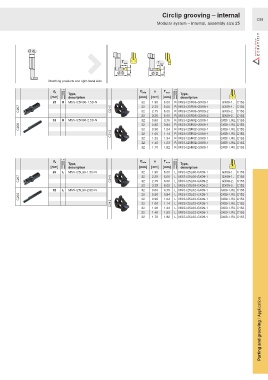

Page 703 - Ceratizit Catalog

Circlip grooving – internal
C98
Modular system – internal, assembly size 25

T max
T max
Ø D s Ø D s
Matching products see right-hand side.

L R L R
d A D min s T max
Type, Type,
[mm] description [mm] [mm] [mm] description
25 R MSS-I25R90-1.5D-N 32 1.95 6.00 R MSS-I25R06-GX09-1 GX09-1.. C153
C207 C210 32 2.25 6.00 R MSS-I25R06-GX09-1 GX09-1.. C153
6.00
GX09-2.. C153
32
2.75
R MSS-I25R06-GX09-2
32 3.25 6.00 R MSS-I25R06-GX09-2 GX09-2.. C153
32 R MSS-I25R90-2.5D-N 32 0.60 0.75 R MSS-I25R02-GX09-1 GX09-1..R/L C153
C208 32 0.80 0.94 R MSS-I25R02-GX09-1 GX09-1..R/L C153
32
0.90
GX09-1..R/L C153
R MSS-I25R02-GX09-1
1.04
C213 32 1.00 1.14 R MSS-I25R02-GX09-1 GX09-1..R/L C153
32 1.20 1.34 R MSS-I25R02-GX09-1 GX09-1..R/L C153
32 1.40 1.53 R MSS-I25R02-GX09-1 GX09-1..R/L C153
32 1.70 1.82 R MSS-I25R02-GX09-1 GX09-1..R/L C153
L R L R
d A D min s T max
Type, Type,
[mm] description [mm] [mm] [mm] description
25 L MSS-I25L90-1.5D-N 32 1.95 6.00 L MSS-I25L06-GX09-1 GX09-1.. C153
C207 C210 32 2.25 6.00 L MSS-I25L06-GX09-1 GX09-1.. C153
6.00
L MSS-I25L06-GX09-2
GX09-2.. C153
2.75
32
32 3.25 6.00 L MSS-I25L06-GX09-2 GX09-2.. C153
32 L MSS-I25L90-2.5D-N 32 0.60 0.75 L MSS-I25L02-GX09-1 GX09-1..R/L C153
C208 32 0.80 0.94 L MSS-I25L02-GX09-1 GX09-1..R/L C153
L MSS-I25L02-GX09-1
GX09-1..R/L C153
32
0.90
1.04
C213 32 1.00 1.14 L MSS-I25L02-GX09-1 GX09-1..R/L C153
32 1.20 1.34 L MSS-I25L02-GX09-1 GX09-1..R/L C153
32 1.40 1.53 L MSS-I25L02-GX09-1 GX09-1..R/L C153
32 1.70 1.82 L MSS-I25L02-GX09-1 GX09-1..R/L C153

Parting and grooving / Application
