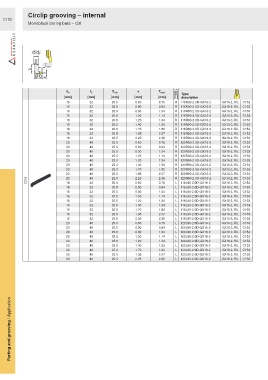

Circlip grooving – internal
C103
Monoblock boring bars – GX

L R
s
d A l 2 D min T max
Type,
[mm] [mm] [mm] [mm] [mm] description
16 32 20.5 0.60 0.75 R I16R90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 0.80 0.94 R I16R90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 0.90 1.04 R I16R90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 1.00 1.14 R I16R90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 1.20 1.34 R I16R90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 1.40 1.53 R I16R90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 1.70 1.82 R I16R90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 1.95 2.07 R I16R90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 2.25 2.36 R I16R90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 0.60 0.75 R I20R90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 0.80 0.94 R I20R90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 0.90 1.04 R I20R90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 1.00 1.14 R I20R90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 1.20 1.34 R I20R90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 1.40 1.53 R I20R90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 1.70 1.82 R I20R90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 1.95 2.07 R I20R90-2.0D-GX16-2 GX16-2..R/L C153
C216 20 40 25.0 2.25 2.36 R I20R90-2.0D-GX16-2 GX16-2..R/L C153
C153
0.75
32
20.5
0.60
GX16-2..R/L
16
L
I16L90-2.0D-GX16-2
16 32 20.5 0.80 0.94 L I16L90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 0.90 1.04 L I16L90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 1.00 1.14 L I16L90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 1.20 1.34 L I16L90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 1.40 1.53 L I16L90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 1.70 1.82 L I16L90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 1.95 2.07 L I16L90-2.0D-GX16-2 GX16-2..R/L C153
16 32 20.5 2.25 2.36 L I16L90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 0.60 0.75 L I20L90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 0.80 0.94 L I20L90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 0.90 1.04 L I20L90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 1.00 1.14 L I20L90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 1.20 1.34 L I20L90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 1.40 1.53 L I20L90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 1.70 1.82 L I20L90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 1.95 2.07 L I20L90-2.0D-GX16-2 GX16-2..R/L C153
20 40 25.0 2.25 2.36 L I20L90-2.0D-GX16-2 GX16-2..R/L C153
