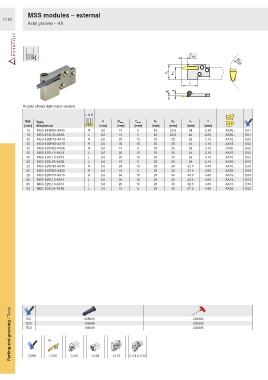

P. 788
MSS modules – external
C183
Axial grooves – AX
T max D min
h 2 h 1
l 1
f
s
Picture shows right-hand version
L N R
Bgr. Type, s D min T max h 1 h 2 l 1 f
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm]
16 MSS-E16R05-AX05 R 3.0 10 5 16 20.5 24 2.50 AX05.. E01
16 MSS-E16L05-AX05 L 3.0 10 5 16 20.5 24 2.50 AX05.. E01
20 MSS-E20R10-AX10 R 3.0 20 10 20 25 33 3.10 AX10.. E02
20 MSS-E20R15-AX15 R 3.0 30 15 20 25 44 3.10 AX15.. E02
20 MSS-E20R05-AX05 R 3.0 10 5 20 25 28 3.10 AX05.. E02
20 MSS-E20L15-AX15 L 3.0 30 15 20 25 44 3.10 AX15.. E02
20 MSS-E20L10-AX10 L 3.0 20 10 20 25 33 3.10 AX10.. E02
20 MSS-E20L05-AX05 L 3.0 10 5 20 25 28 3.10 AX05.. E02
25 MSS-E25R10-AX10 R 3.0 20 10 25 30 32.5 4.60 AX10.. E03
25 MSS-E25R05-AX05 R 3.0 10 5 25 30 27.5 4.60 AX05.. E03
25 MSS-E25R15-AX15 R 3.0 30 15 25 30 43.5 4.60 AX15.. E03
25 MSS-E25L15-AX15 L 3.0 30 15 25 30 43.5 4.60 AX15.. E03
25 MSS-E25L10-AX10 L 3.0 20 10 25 30 32.5 4.60 AX10.. E03
25 MSS-E25L05-AX05 L 3.0 10 5 25 30 27.5 4.60 AX05.. E03
Parting and grooving / Tools E01 AX C155 C168 228620 C175 C171+C173 220983
220983
E02
195068
E03
195069
220985
C269
C169
